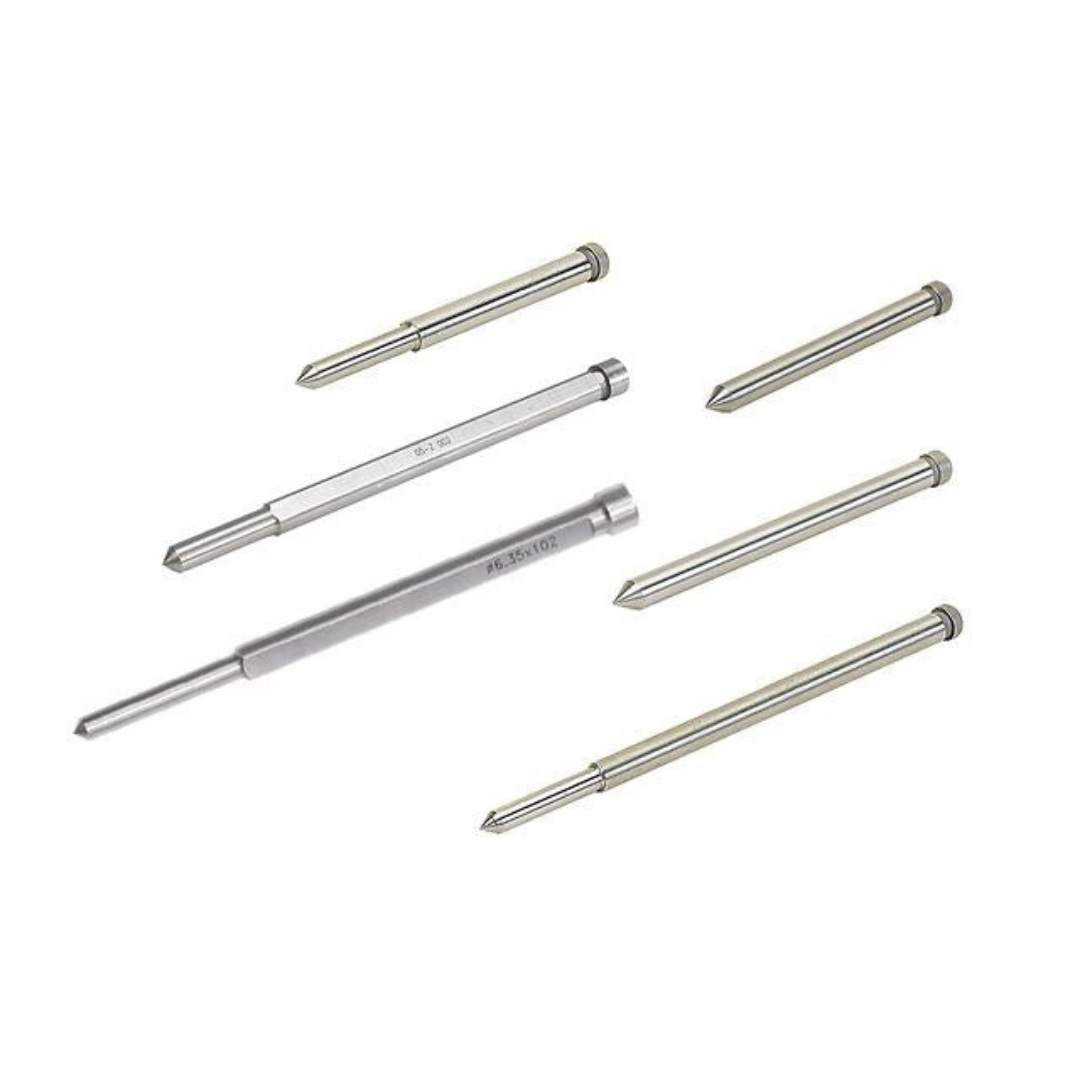

Walter Pilot Pins for Weldon Shank Carbide Core Cutters



Precisely position annular cutters over drilling spot and eject slug after drilling is completed. All Walter pilot pins are hardened and precision ground for longest life.

• Hardened and precisely ground

• Options:

  For use with cutter dia.		Max. Drilling Depth		Part No.
  1 2 – 11 16		1-1 2		05-Z 019
  3 4 – 2-3 8		1-1 2		05-Z 020
  13 16 – 2-1 4		4		05-Z 033



  Options	1/2" – 11/16" – 05-Z 019, 3/4" – 2-3/8" – 05-Z 020, 13/16" – 2-1/4" – 05-Z 033
