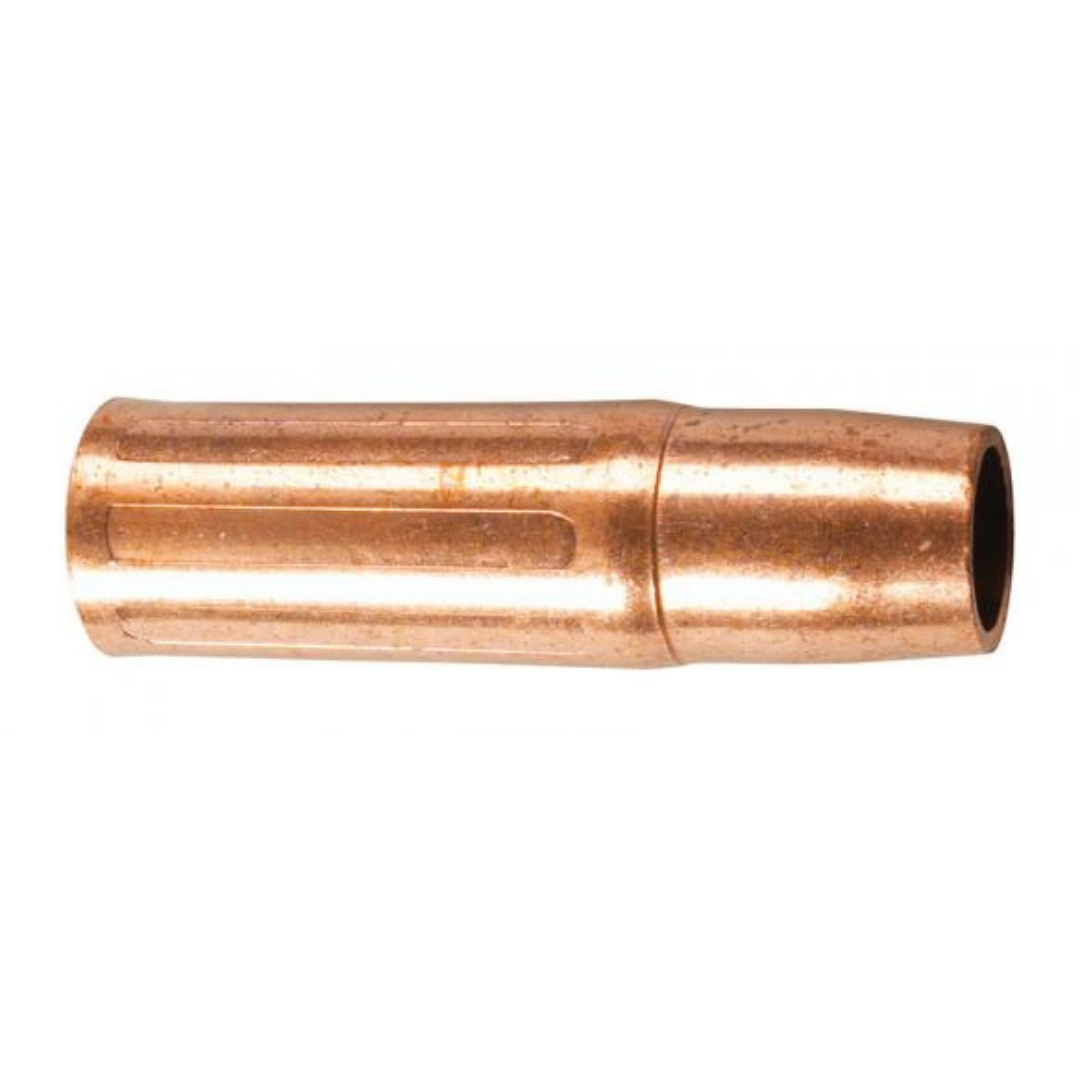

Tweco 23 Series Heavy Duty Nozzles



Professional & Weldskill 23 Series Air Cooled Thread-on Nozzles are offered in Standard, Tapered, and Heavy Duty varieties.

• Easy identification – Part No. rolled stamped on the outside surface

• 3-piece design – does not require an additonal insulator

• Nozzle threads onto the conductor tube assembly

• Used in medium to heavy duty welding application up to 450 amperes

• 3-piece nozzle design, includes:

  • Nozzle Housing – Cut and Formed from 122 DHP copper alloy tubing

  • Nozzle Insert – machined from a solid brass allow and machining the internal threads to match the conductor tube OD threads

  • Nozzle insulator – made from G7 silicone material, providing the electrical insulation needed from the gas diffuser

  • Options:

    • Tweco 23 Series 23H-50 Nozzle (1 2, Heavy Duty) Tip Recess – 1230-1210

    • Tweco 23 Series 23H-75 Nozzle (3 4, Heavy Duty) Tip Recess – 1230-1230
