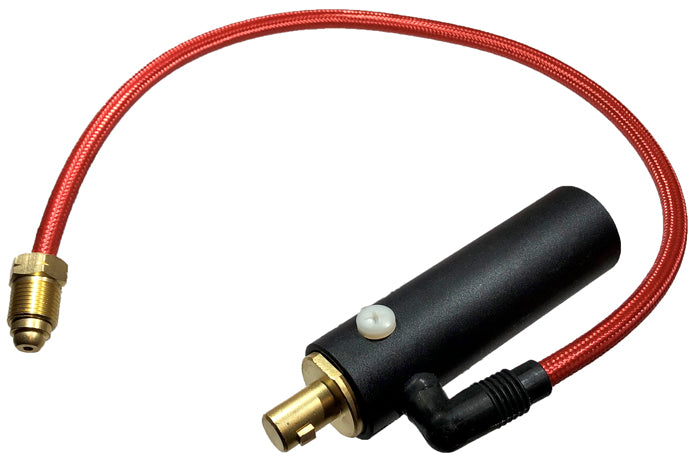

Powerweld TIG Torch Adapter for Water Cooled TIG Torches

The Powerweld Water-Cooled TIG torch adapters thread onto standard water cooled torch cables to produce a Dinse 35 (50mm) power connection and side water hose.

• Male power connection: Dinse 35 (50 mm)
• Internal Female Thread: 7 8 -14 Left Hand Thread
• Water Hose: 5 8 Left Hand Thread

• Compatibility Table

  Adapter Part Number		Miller Equivalent Compatible Machines		Lincoln Equivalent Compatible Machines		ESAB Compatible Machines
  PWTA1820 (solid 50mm standard Dinse® w water side hose)		Miller no. 195377 (DA-1820L) CST 250, CST 280, CST 300, CST 400; Dynasty 200 SD, 200 DX, 210, 210 DX, 280, 280 DX, 300 Series, 350, 400 Series; Invision 350MPa, 352MPa, 354MP; Maxstar 200 Series, 210 Series, 280 Series, 300 Series, 350, 400; Syncrowave 250 (all models), 300, 350 (all models), 500; Aerowave; Pipeworx 350 Fieldpro (w Dinse)		Lincoln no. K1622-4  Invertec 160-S, V200-I, V200-PRO, V250-S, V275-S, V300-I; Power MIG 210MP; Power Wave 355, 355M		Aristo MIG 4004i Pulse, 5000i, U5000i; Caddy Arc 151i, 152i, 201i; Caddy TIG 1500i, 2200i, 2200i AC DC; ET 141i AC DC, ET 186i AC DC, ET 201i DC, 220i AC DC, 301i AC DC; Fabricator 211i, 252i; Handy Tig 180; Heliarc 160i, 161 AC DC, 252, 281i AC DC, 352, 353i AC DC; MTS-3500i; Rebel EMP EMS 215ic, EMP EMS 235ic; Renegade ES 300i; Warrior 400i MV CC CV
