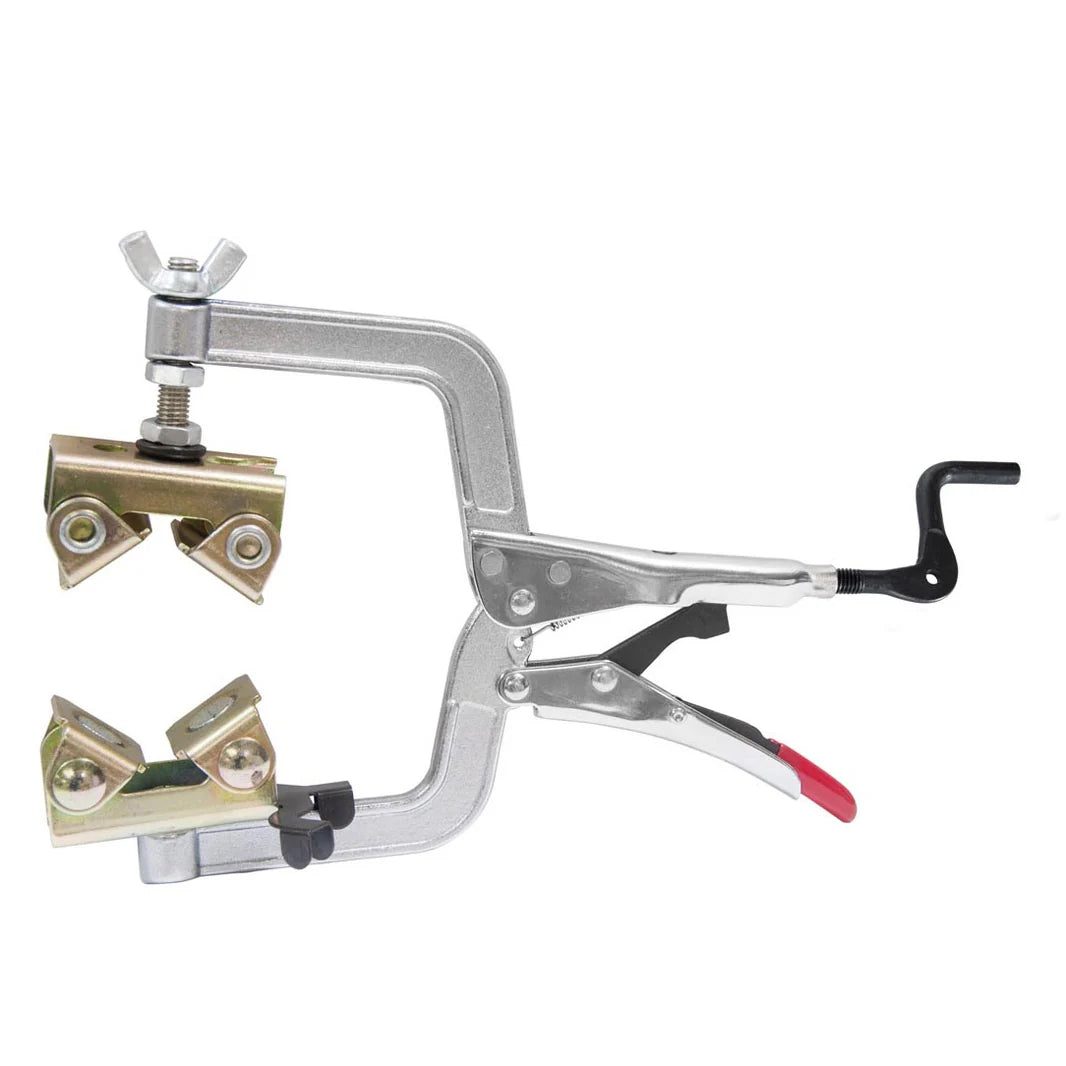

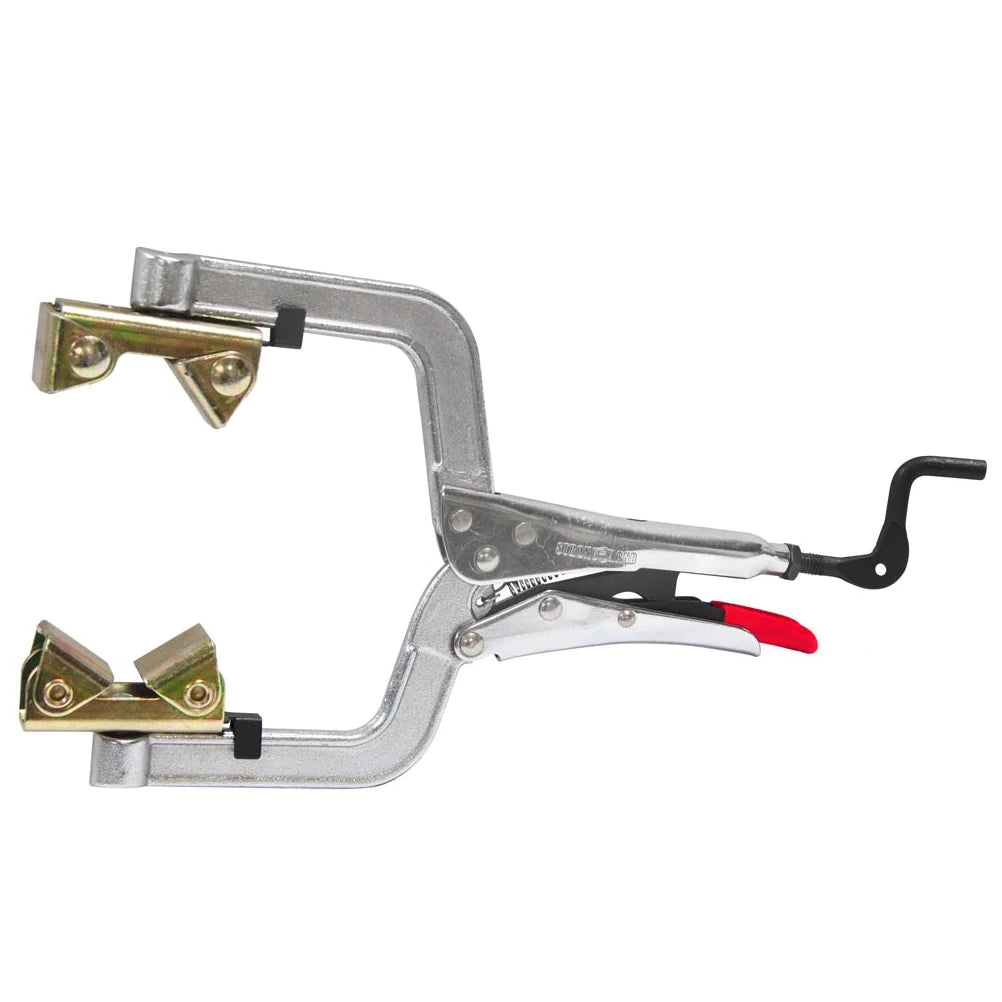

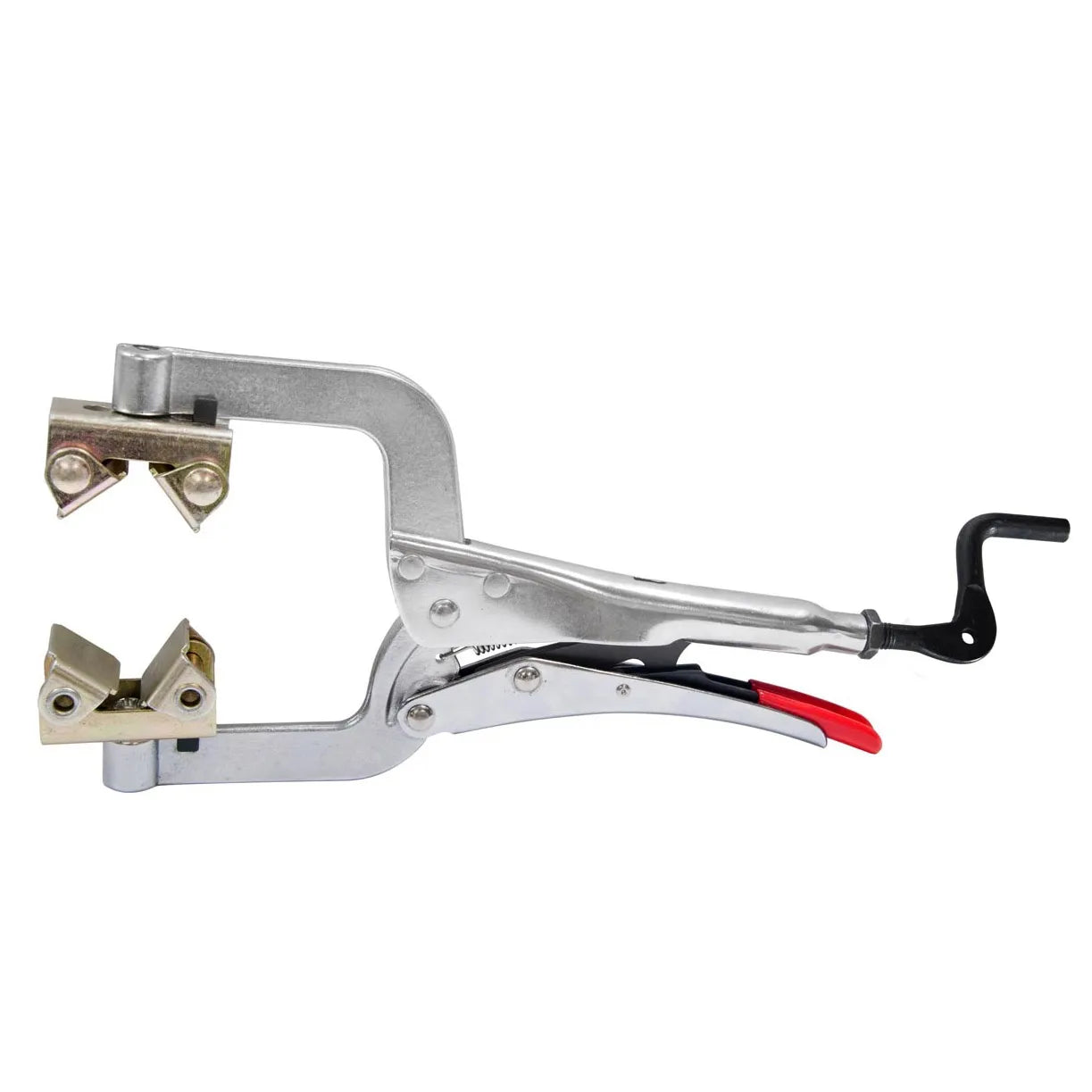

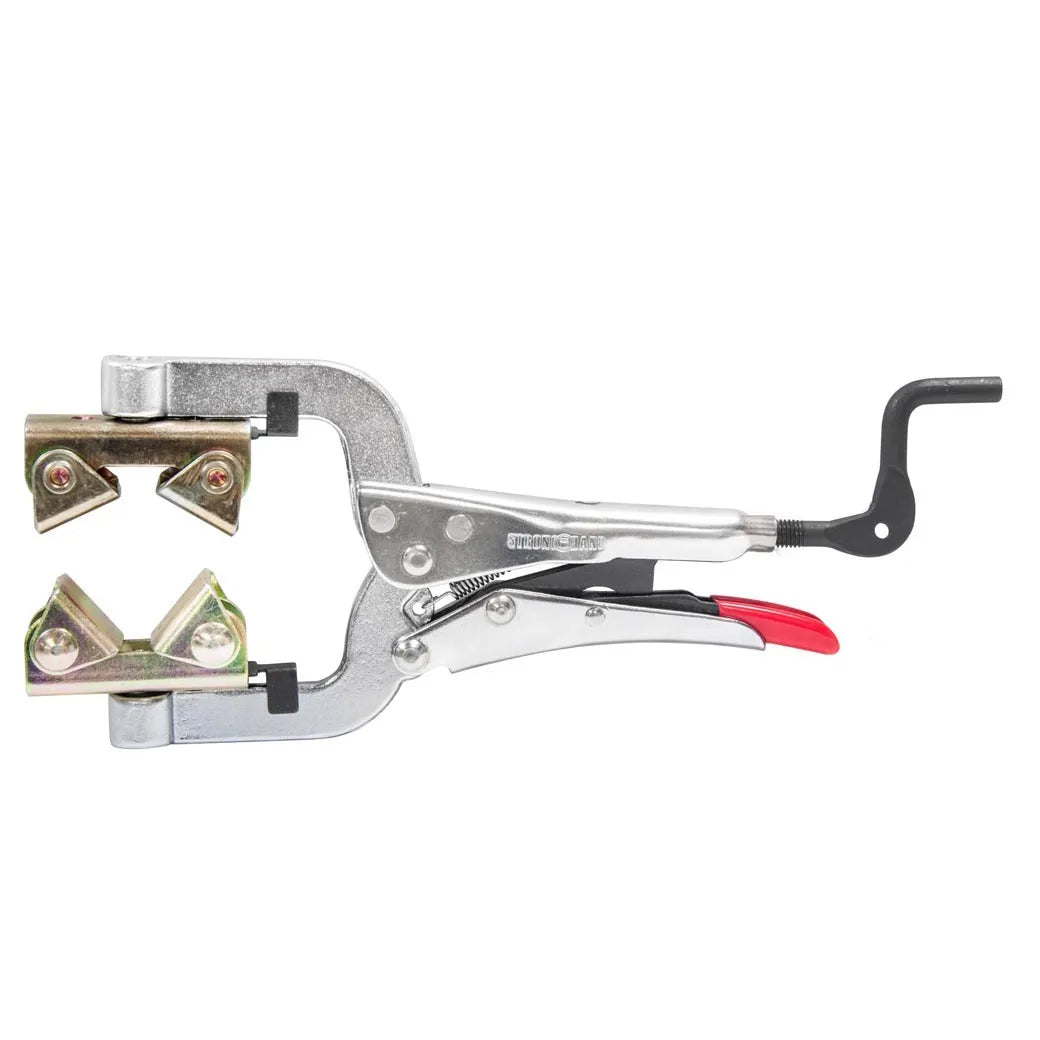

Strong Hand Locking Pipe Pliers

V-Pads for holding pipes and round tubes

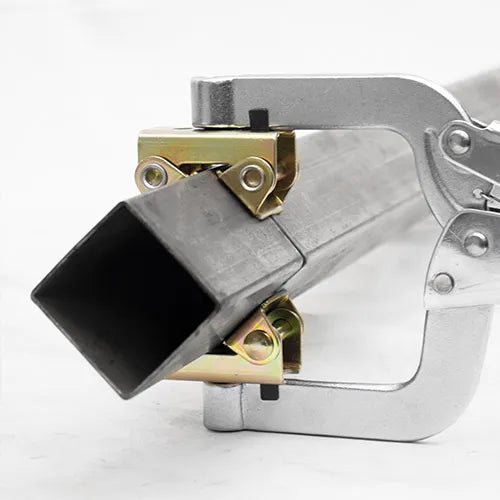

The convenient way to hold round or square tubes for butt-welding.

• Wide opening allows the Pipe Pliers to hold up to 2-1 2″ diameter pipes.
• Two V-Pads provide a better clamping surface.
• Adjustable top spindle for holding pipes of varying sizes.

• Part No.

  Top V-Pad

  Bottom V-Pad

  Throat Depth (in)

  MAX Clamping Capacity (in)

  Thread

  Overall Length (in)

  Weight (lb)

  PG622V

  Fixed

  Fixed

  2

  1 – 2

  M8

  6

  0.8

  PG634V

  Fixed

  Fixed

  3

  2 – 3

  M8

  8.5

  1.1

  PG635V

  Adjustable

  Magnetic (0º & 45º rotatable)

  3

  1.5 – 2.5

  M8

  8.5

  1.2

  PG635VS

  Adjustable Stainless Steel

  (0º & 45º rotatable) Stainless Steel

  3

  1.5 – 2.5

  M8

  8.5

  1.2

  PG114V

  Fixed

  Fixed

  3.5

  1.5 – 2.5

  M10

  11

  2.8

  PG115V

  Adjustable

  Fixed

  3.5

  1.5 – 2.5

  M10

  11

  2.9



  Pliers Overall Length	6" Overall – PG622V, 8.5" Overall – PG634V, 8.5" Adjustable – PG635V, 11" Overall – PG114V
