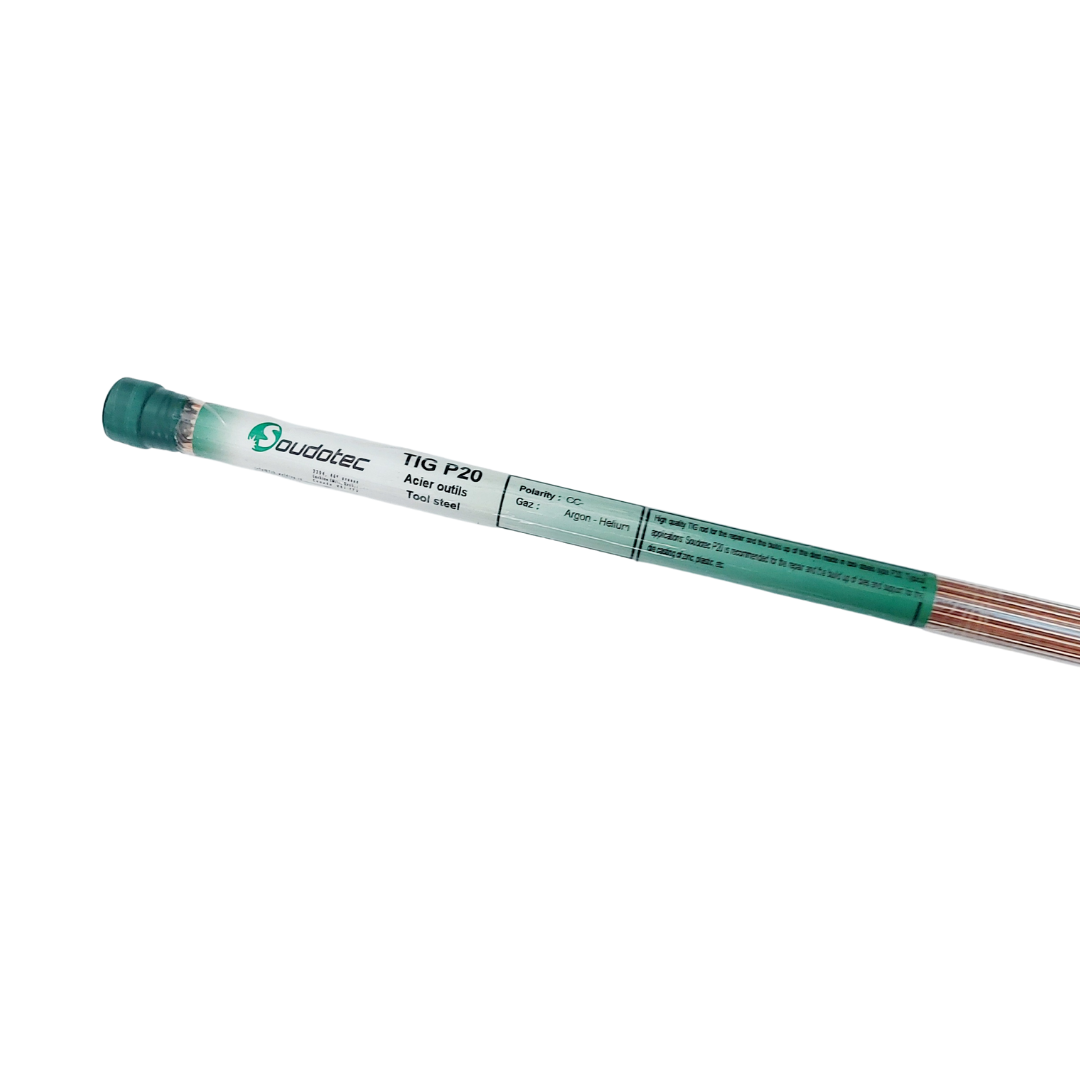

Soudotec TP20 Filler for P20 Mold Steels

High quality TIG rod for the repair and the build up of dies made in tool steel type P20

Soudotec P20 is recommended for the repair and the build up of dies and support for the die casting of zinc, plastic, etc.



• Deposit metal similar to P20 steel, depending on the case
• Dense and porosity free deposit
• Deposit can be heat treated
• Deposit has good machinability

• Instructions for use:

  Remove any trace of oil, grease and dirt from the surface. Remove damaged metal. Prepare the part with rounded grooves and remove all cracks. Preheat the thick section between 250 – 400°C (482 – 900°F). Deposit straight bead of 2 to 3 long. Use a short arc and at high welding speed to avoid overheating the parts. Cool down slowly. In certain situations it is suggested to post-heat to reduce the stress and to have a good colour match deposit.

  Available Sizes:



  • 0.035 (0.9 mm) – 1kg Package – TP20.09K
  • 1 16 (1.6 mm) – 1kg Package – TP20.16K
  • 3 32 (2.5 mm) – 1kg Package – TP20.25K
