Mathey Dearman Pipe Oxy-Fuel Pipe Cutting & Pipe Beveling Machine



Mathey Dearman s E-Z Pipecut portable oxy-fuel pipe cutting and beveling chain driven machines are the economical solution for cutting and beveling pipe with wall thickness 5 mm up to 50 mm. It is small and compact, strong and reliable, used by contractors, welders and pipefitters, equally on-site or in the workshop.

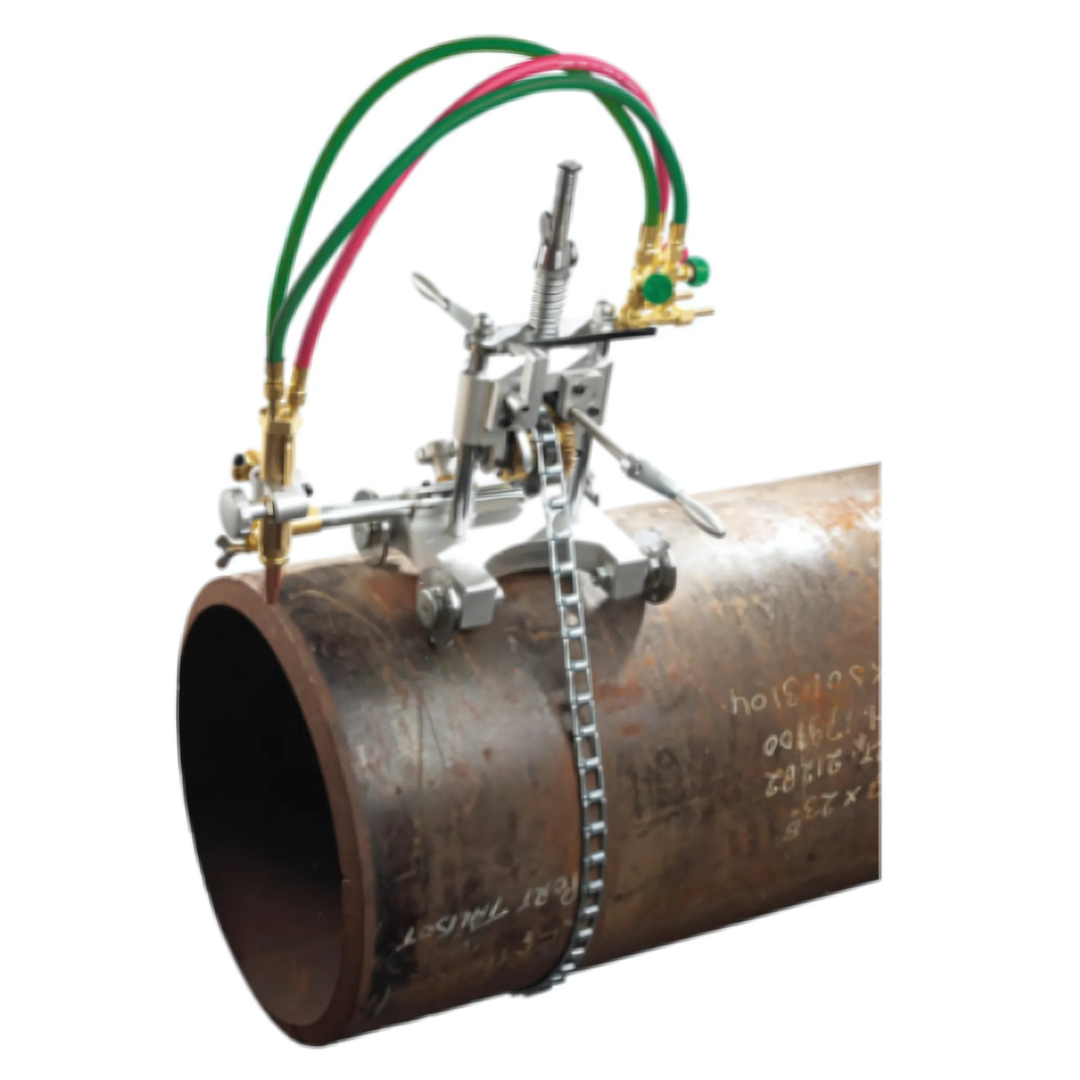

The E-Z Pipecut Manual is a straight forward portable, hand-operated compact chain – driven pipe cutting and beveling machine with an oxy-fuel cutting torch that provides a smooth, accurate cutting action by incorporating a low gear ratio and worm wheel drive.

The machine also features a quick-release clutch, that allows the operator to disengage the chain from the drive cog for rapid set up and positioning, and the beveling head angle (up to 45°) can be set quickly and accurately by scale on a rack and pinion.

Features

• Manual-Driven Operation: No external power supply needed, ensuring easy handling.


• Wide Pipe Diameter Range: Cuts pipes ranging from 114 mm (4½ ) to 600 mm.


• Adjustable Bevel Angles: Supports variable beveling angles up to 45°.


• Guide Band Compatibility: For pipes exceeding 600 mm, an optional guide band system ensures precision.


• Vertical & Lateral Torch Adjustments: Provides 50 mm vertical and 100 mm lateral torch movement.


• Durable & Lightweight: Weighing only 8.5 kg (18.7 lbs), making it portable yet robust.


• Universal Torch Compatibility: Suitable for all nozzle-mix cutting nozzles (nozzles not included).

• Technical Specifications:

  Specification		Details
  Model		EZPCM
  Power Supply		Manual-driven unit
  Pipe Diameter		Up to 600 mm (standard)
  Wall Thickness		5 – 50 mm
  Torch		Universal nozzle-mix torch
  Bevel Angle		Adjustable up to 45°
  Vertical Torch Adjustment		50 mm
  Lateral Torch Adjustment		100 mm
  Track Width		230 mm
  Weight		8.5 kg (18.7 lbs)
  Dimensions (L x W x H)		350 x 420 x 550 mm

  ---

  Package Includes:

  • E-Z Pipecut Manual cutting machine
  • Standard cutting chain (for 114 – 600 mm pipe diameters)
  • Operation instructions
  • Torch included
