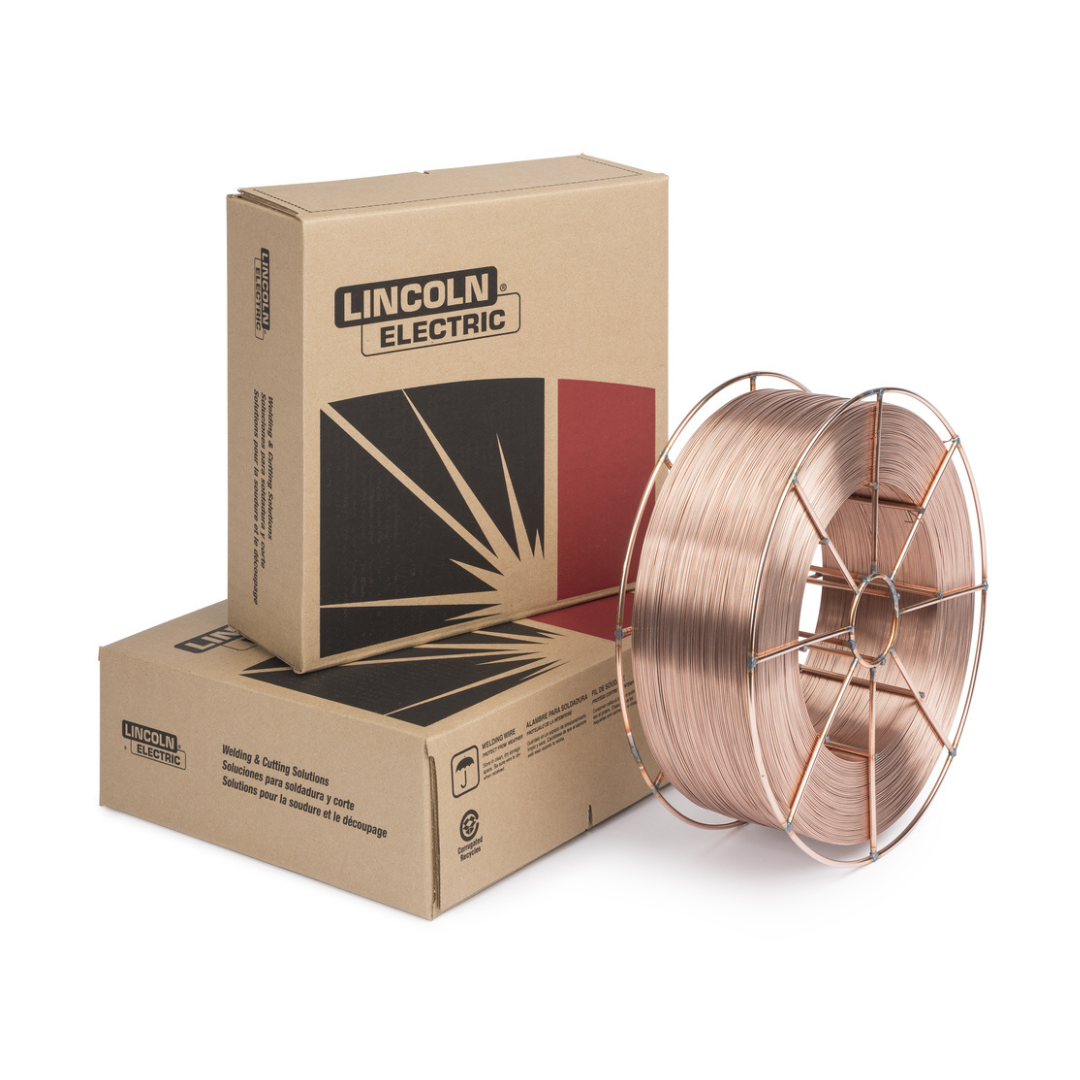

Lincoln Electric SuperArc® L-59®

Ultra-Premium ER70S-6 Carbon Steel MIG Wire

A copper coated, mild steel, engineered alloy MIG wire that leads the industry in arc performance, wire feedability and consistency, as well as extending contact tip life.  Formulated to minimize silica deposits on the finished weld.  This wire performs very well on robotic cobot applications.

Features

• Engineered alloy system enhances silicon island management
• Minimal spatter
• Copper coated for long contact tip life
• Fast travel speeds
• MicroGuard® Ultra provides superior feeding and arc stability

• Typical Applications

  • Medium to heavy mill scale base material
  • Sheetmetal to 380-485 MPa (55-70 ksi) yield strength material
  • Automotive repair
  • Robotic, Cobot & hard automation
  • Structural steel, Pressure vessels
  • Welding Positions – All
  • Shielding Gas – Mixed Shielding Gas 100% CO2

  • Available Wire Diameters and Package Sizes

    Diameter in. (mm)		44lb Spool		500lb Box
    0.035 in (0.9 mm)		ED561124		ED032894
    0.040 in (1.0 mm)		ED561125
    0.045 in (1.1 mm)		ED561126		ED032896
    0.052 in (1.3 mm)		ED561130
    1 16 in (1.6 mm)		ED032968

    Diameter	0.035" (0.9mm), 0.045" (1.1 mm), 0.052" (1.3 mm), 1/16" (1.6 mm), 0.040" (1.0 mm)

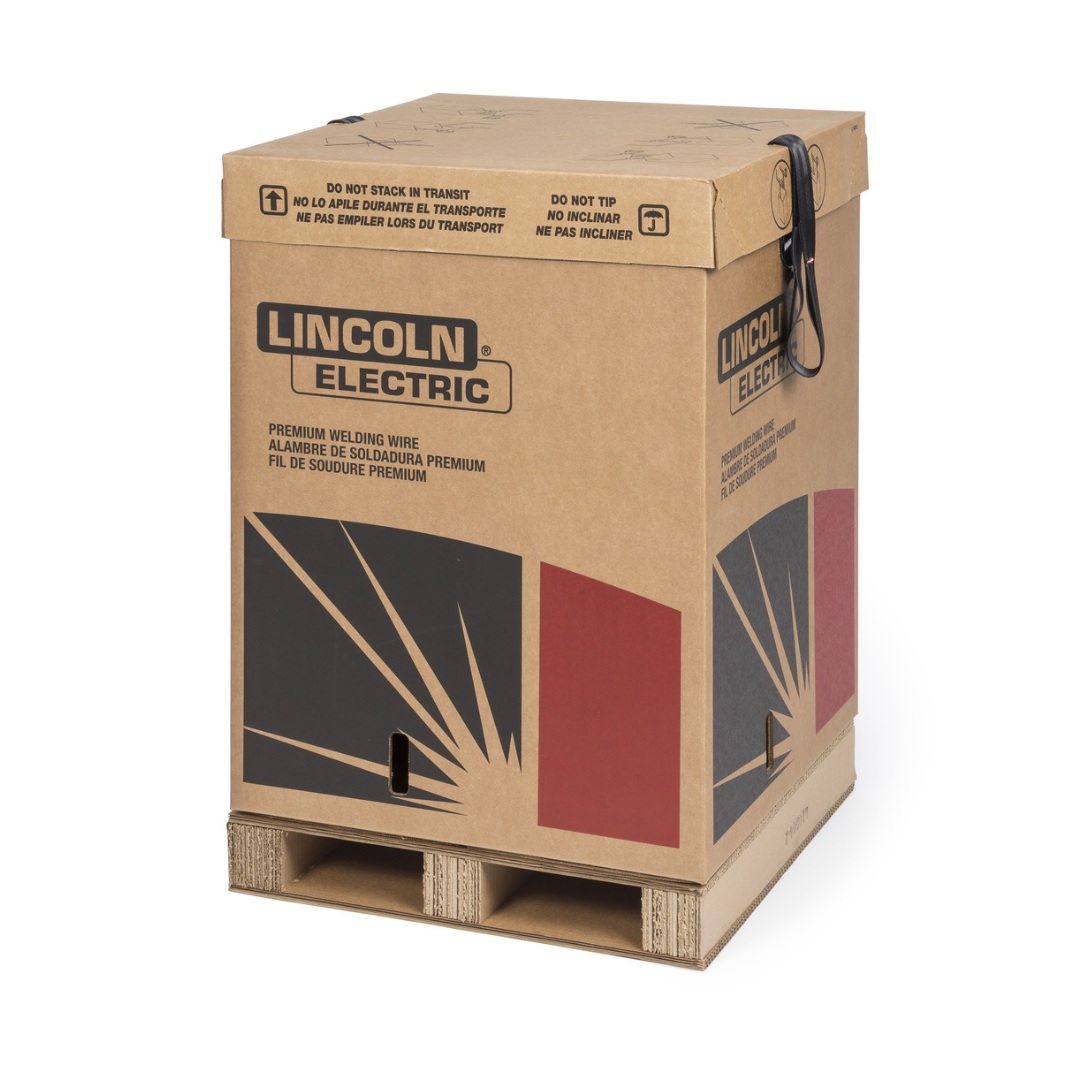

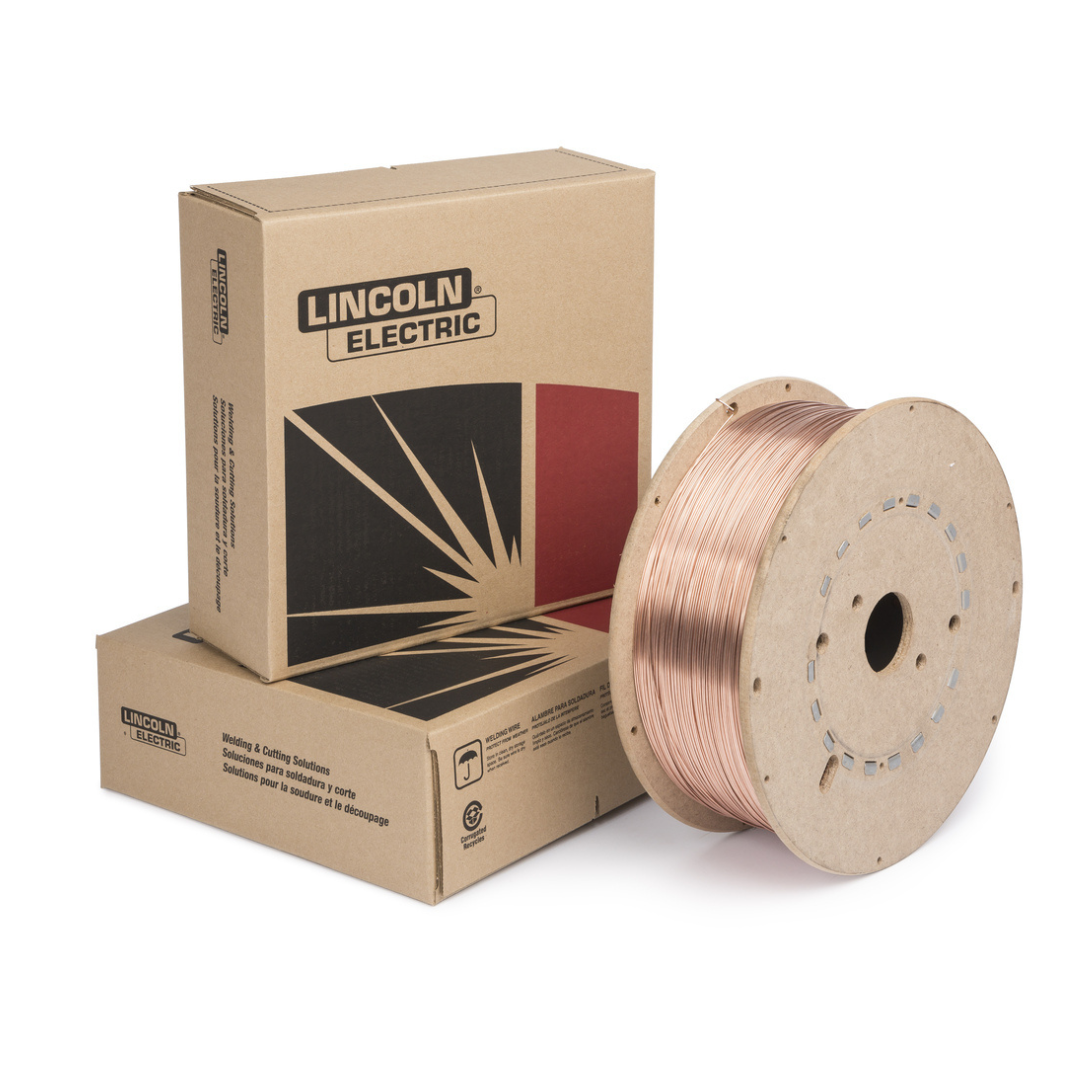

    Package Size	12" – 44 lb. Spool, 500 lb. Box
