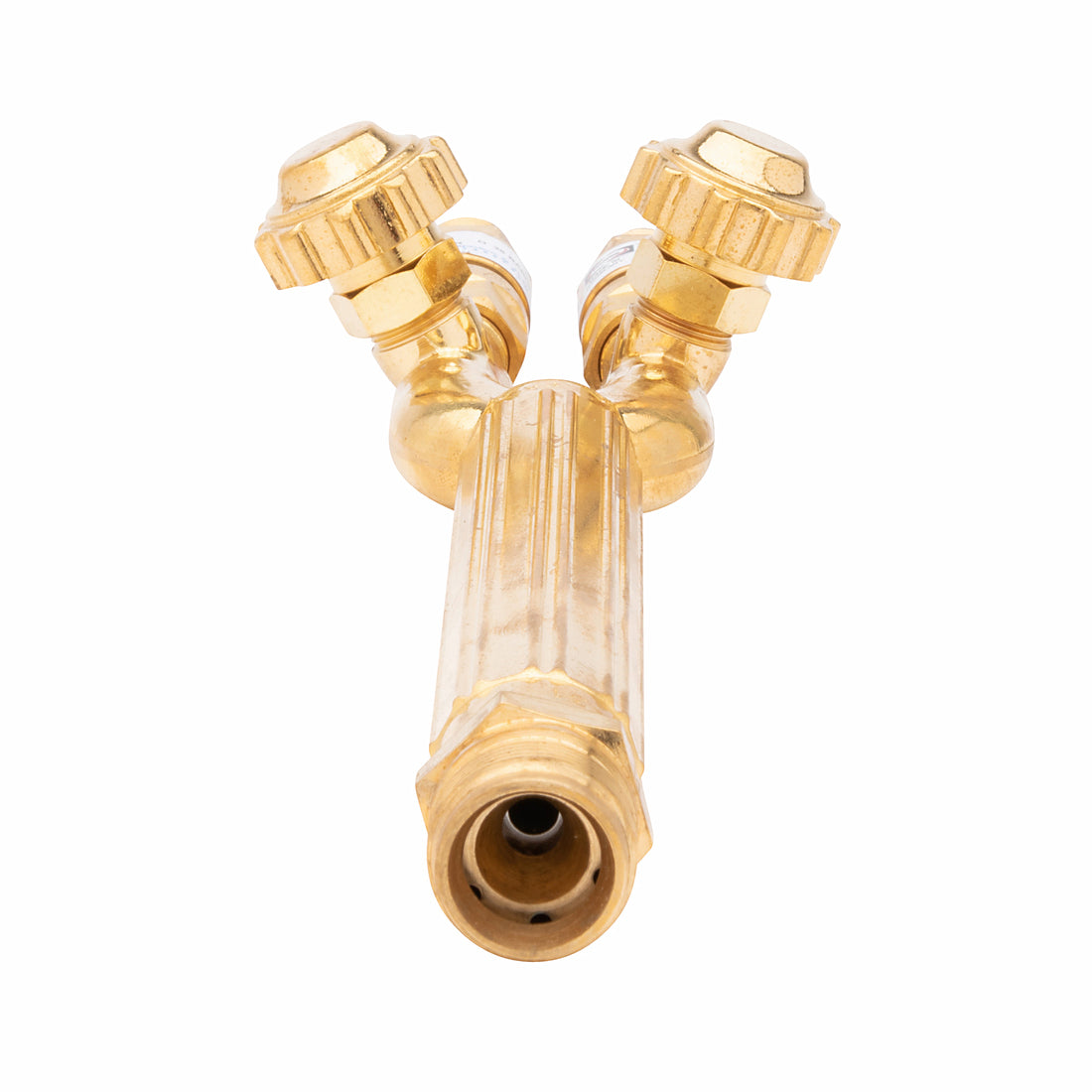

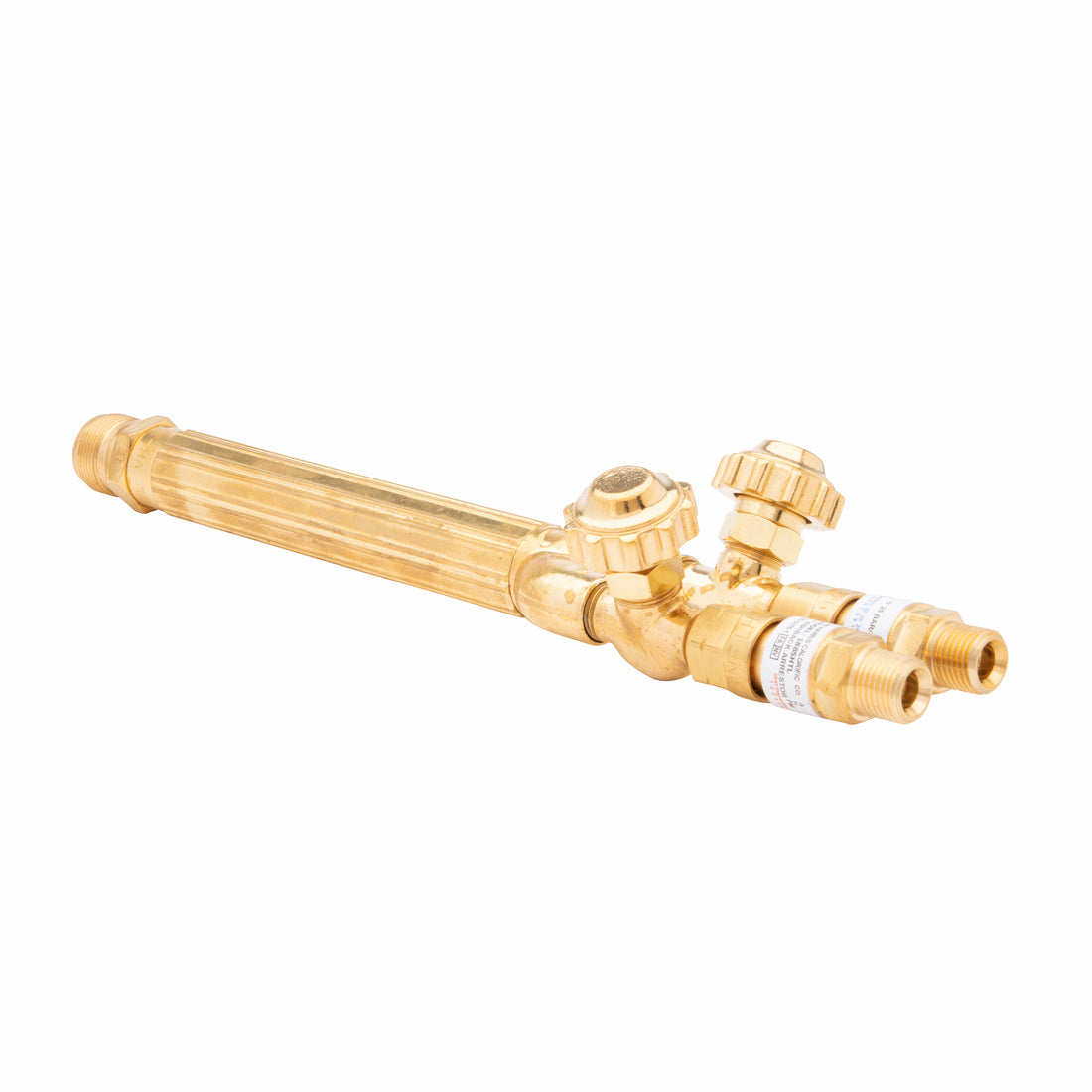

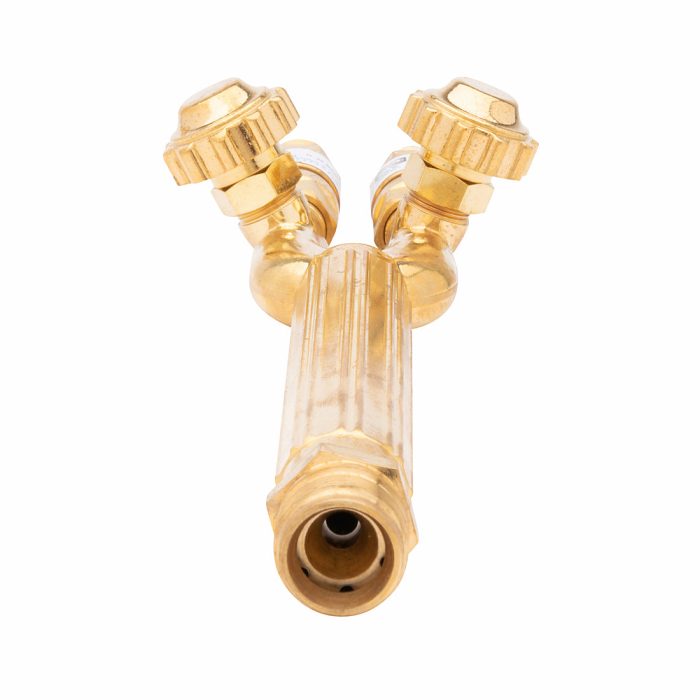

Harris Model VH31 Victor Style Combination Torch Handle

Victor Compatible Oxy-Fuel Welding Cutting Handle

Model VH31 V-Series® is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1 2 in. (12.7mm) plate.

Features

• Heavy duty combination torch handle for use with all fuel gases

• Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
• Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
• O-ring sealed for greater strength and higher capacity
• Features B-hose fittings (9 16 in.-18)
• Embossed with model number for ease in selecting compatible parts
• Handle is 11 in. (279.4mm) in length
• Equipped with Model 88-5N FBTL&R flashback arrestors installed
• Cuts up to 8 in. (203.2mm) plate; Welds up to 1 2 in. (12.7mm) plate
• Part Number: 1400422

• Compatible Attachments

  • Harris Model VH24 Victor Style Cutting Attachment
  • Harris Model V-W Victor Style Mixer
