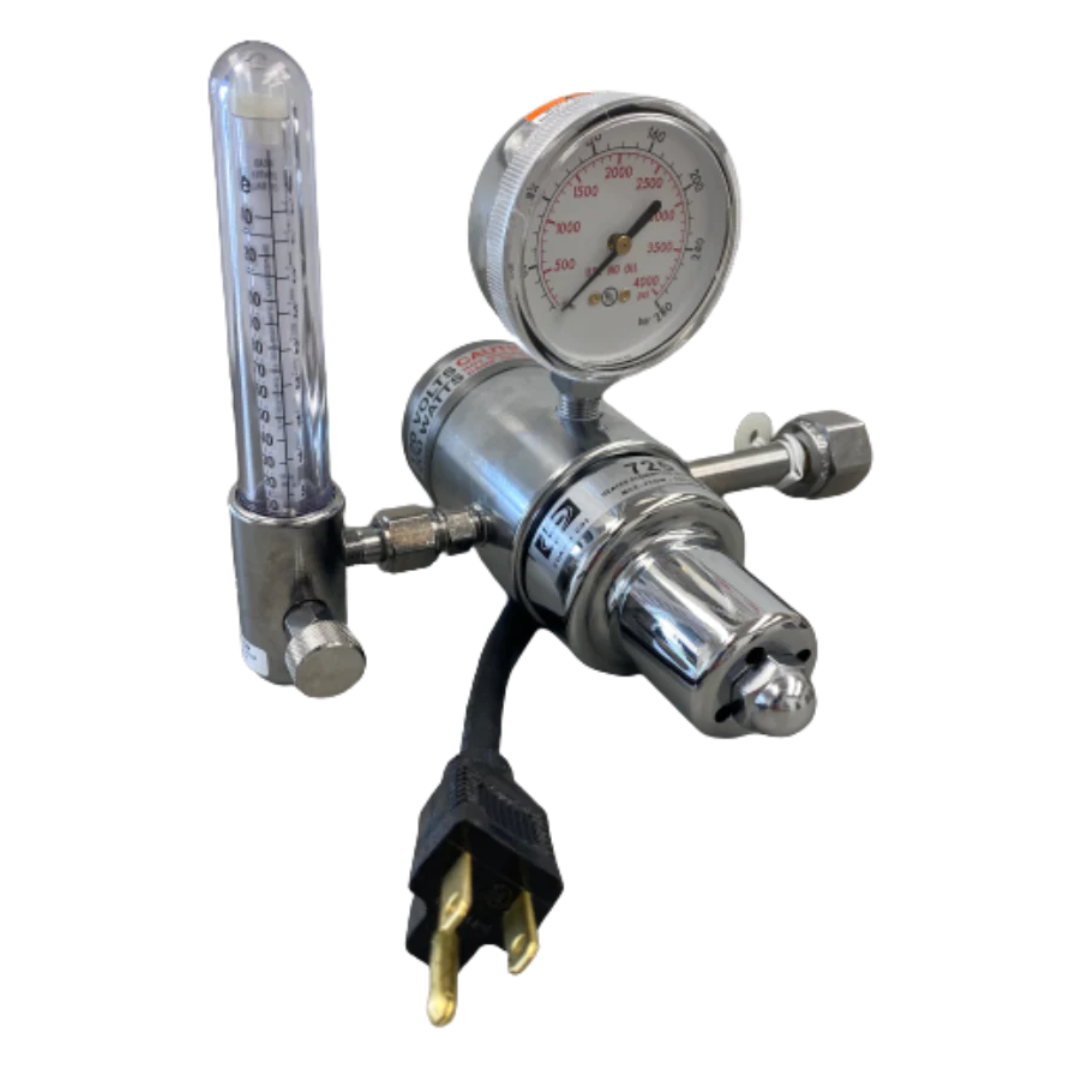

Harris Model HP725 Heated Argon Nitrogen He Flowmeter

HP725-100SCFH-580 120 – CGA 580 – (120 Volt)

The Model HP725 is a two-stage electrically heated flowmeter regulator designed to resist CO2 regulator freeze up.  It has stainless steel diaphragms and it is well suited for shielding arc welding, chemical blanketing, purging and Ph control.

• Capacity: Heavy duty
• CGA 580 Connection
• Gauges: 2.5 chrome plated brass
• Seat: One-piece encapsulated seat design with internal filter and PTFE Teflon® seat
• Body: Chrome plated brass Certifications: CGA E-4 electrical components UL® listed
• Where Used: High flow Argon, Nitrogen, Helium mix gas-shielded welding and other industrial applications
• Heater: 200 watt 120v
• Maximum inlet pressure: 3000psi
• Weight: 4.6 lbs. 2.09 kg.

• Part No. 3100405
