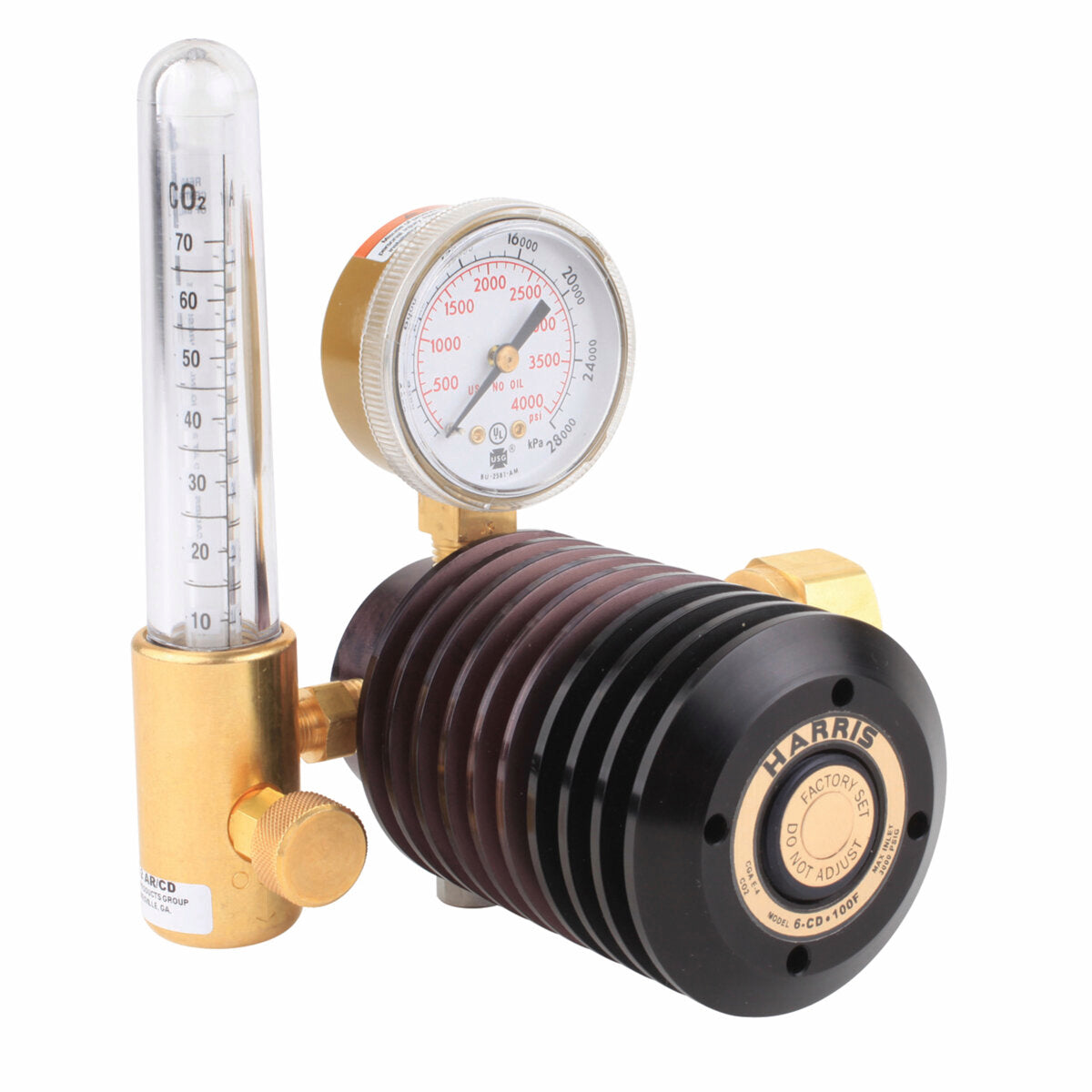

Harris Model 6S-CD-80F-320 Single-Stage Flowmeter Regulator



Model 6S is a compact, competitively priced, single-stage version of our heavy duty two-stage high flow CO2 flowmeter regulator. Designed specifically for CO2 applications where CO2 freeze-up cannot be tolerated. Its sensitive needle valve permits highly accurate flow settings. It requires no electrical power.

Features

• Designed specifically for carbon dioxide applications without freeze-up.
• Regulator is compensated at 50 PSIG.
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the regulator.
• Neoprene diaphragm for better pressure control
• 2 in. Gold painted steel dual scale easy-to-read gauges (psi kPa)
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control to 100 SCFH
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power
• • Part No. 3100066
  • Model No. 6S-CD-80F-320

  • Inlet Fitting		Outlet Fitting		Flow Capacity SCFH		Compensated PSIG		Max. Inlet PSIG		Supply Gauge Max.
    CGA 320		5 8-18 F		10-70		80		3000		4000
