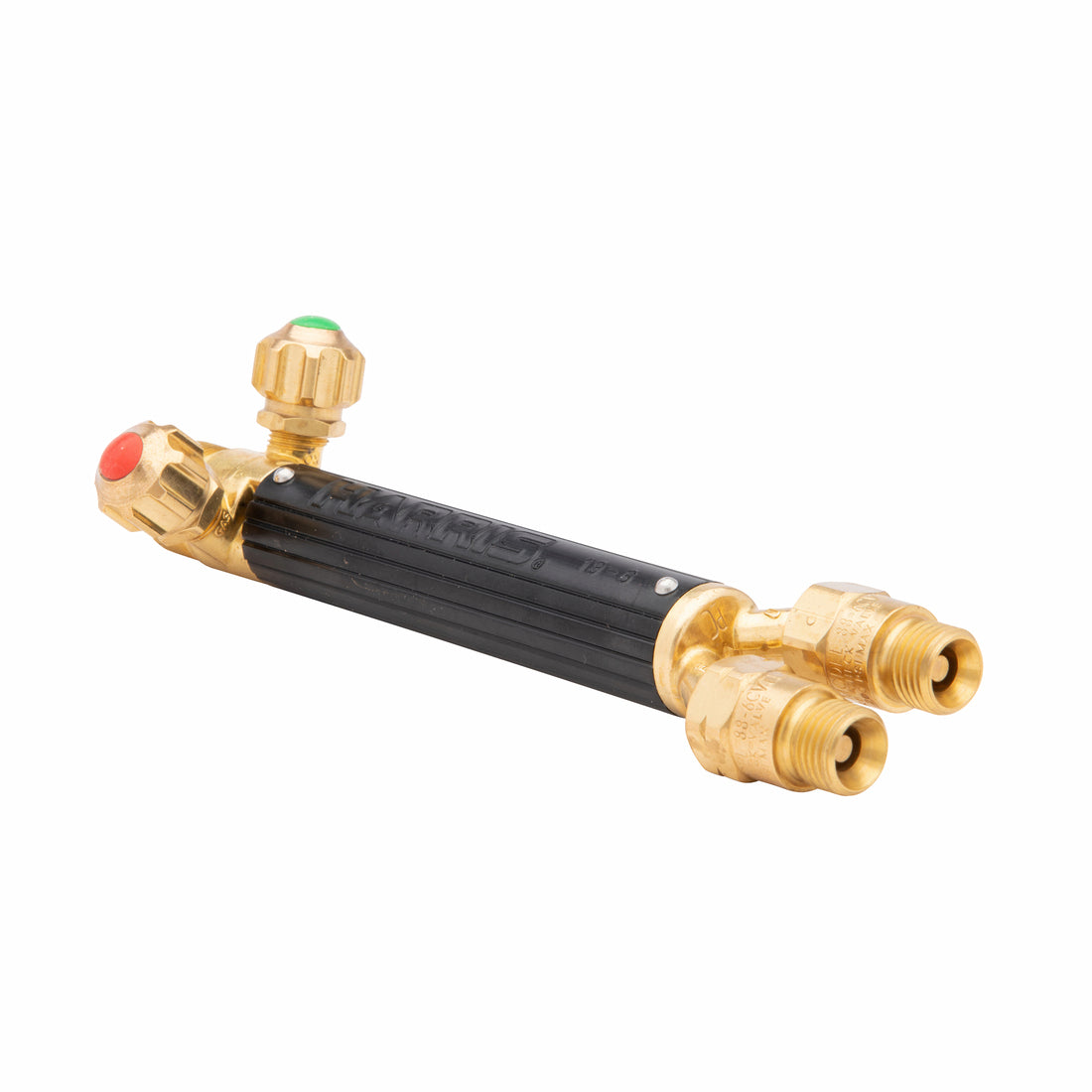

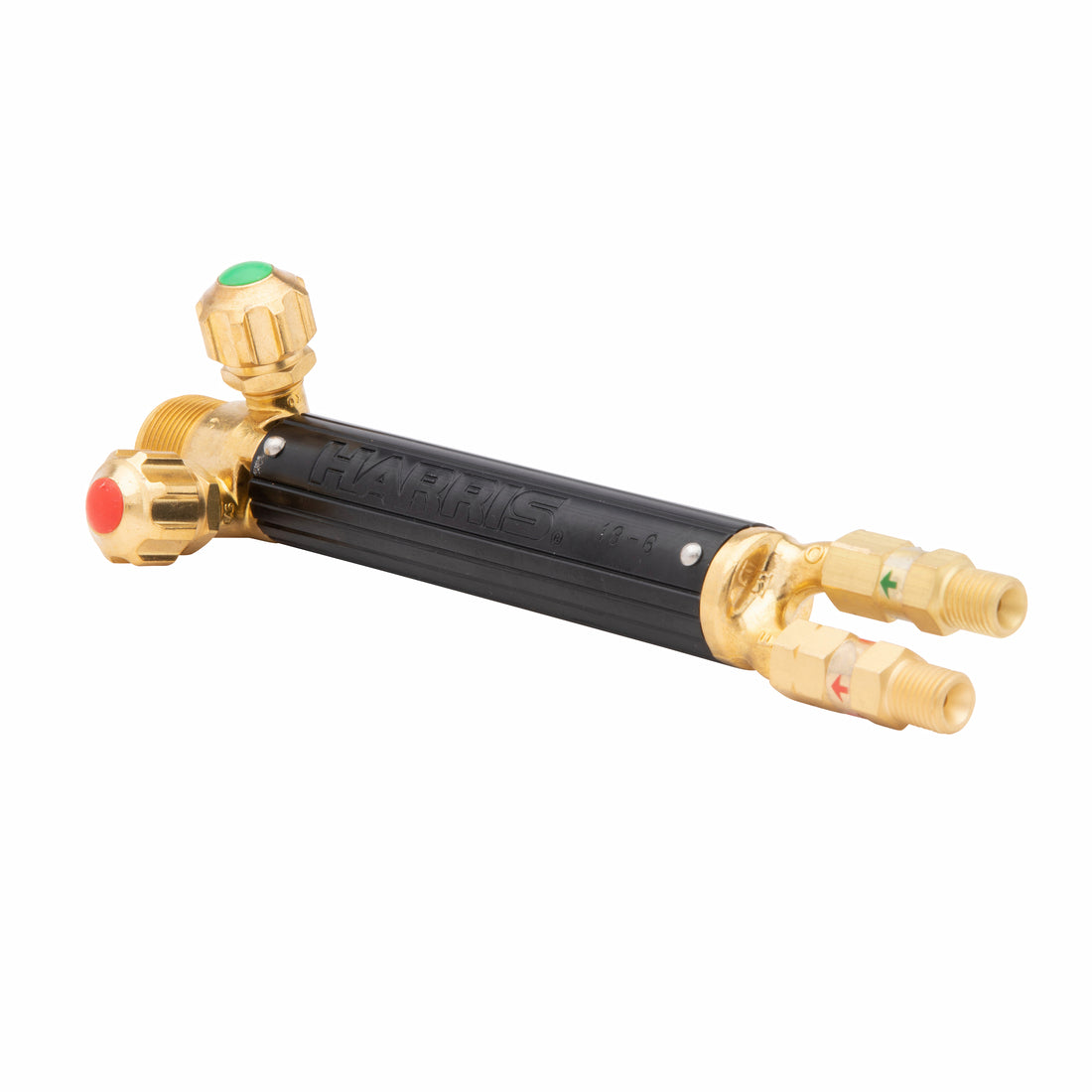

Model 19-6 Combination Torch Handle with Front Valves and Check Valves



The Models 19-6 and 19-6A are combination handles for medium-duty welding, brazing, heating and cutting. They can be used with oxy-acetylene or any of the alternate fuel gases. The Model 19 features silver brazed twin-tube construction. Both Models 19-6 and 19-6A have front valves for easier adjustment while welding and brazing. The 19-6A features 3⁄8 -24 class A hose fi ttings.

Features

• Medium duty combination torch handle with front valves for use with all fuel gases
• Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
• Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
• Front valves for easier adjustments during operation
• Features 9 16 in. – 18 B-hose fittings
• Embossed with model number for ease in selecting compatible parts
• Handle is 7 1 2 in. (190.53mm) in length
• UL® listed
• Equipped with FlashGuard® replaceable check valves
• Cuts up to 2 in. (50.6mm) plate and Welds up to 5 16 in. (7.9mm) plate.
• Part No. 1401156

• Technical Specifications

  • Capacity: Welds to 5⁄16 (7.9 mm); cuts to 2 (50.8 mm)

  • Length: 7 1⁄2 (190.5 mm)

  • Weight: 0.7 lbs. (0.32 kg)

  • Certification: UL® listed

  • Equipped with: FlashGuard® check valves

  • Inlet Connections:
    • Model 19-6: 9⁄16 – 18 (Part Number: 1401156)

    • Model 19-6A: 3⁄8 – 24 (Part Number: 1401143)
