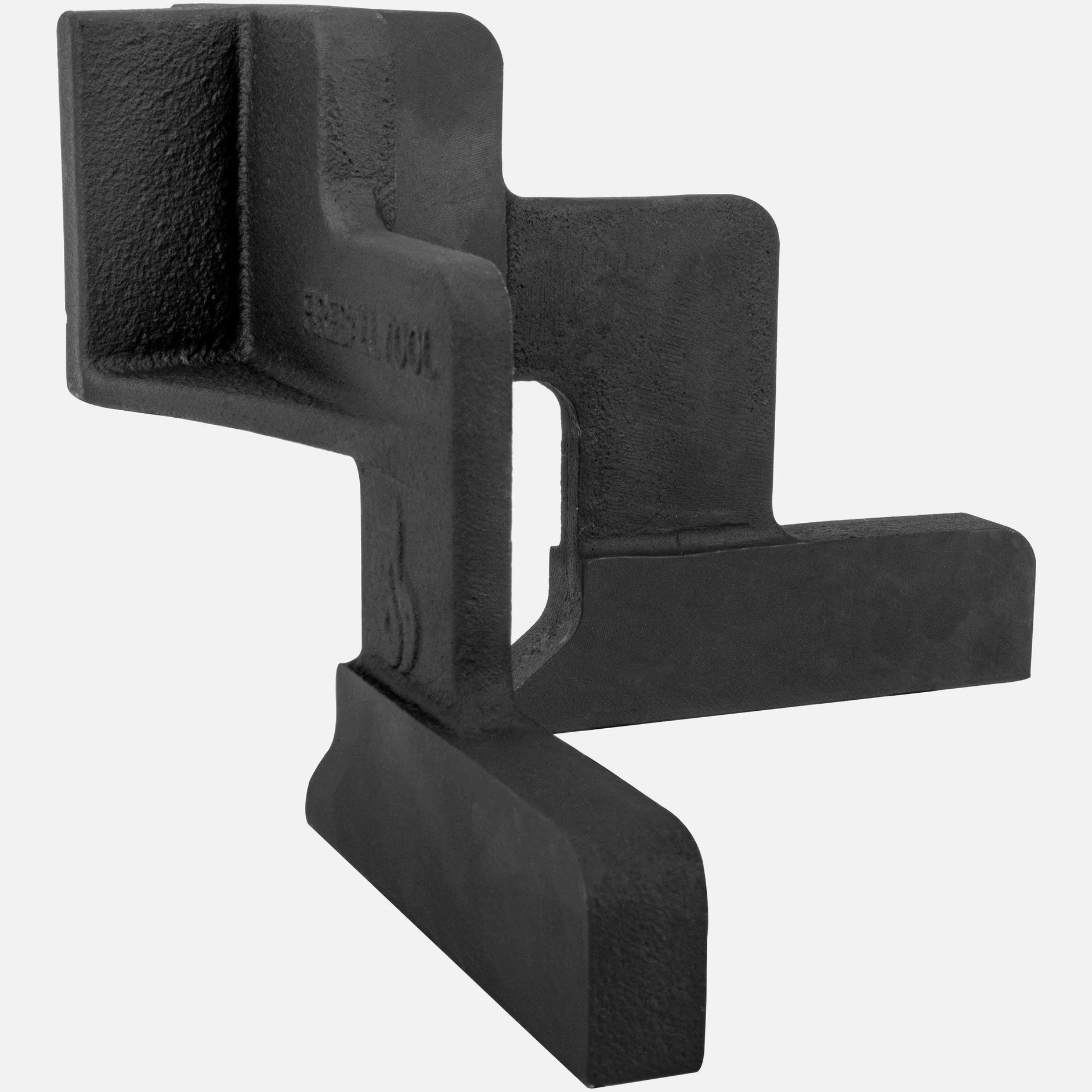

Fireball 3-Axis Square

Three axis square is a unique solution to clamping in 3 axis at once.

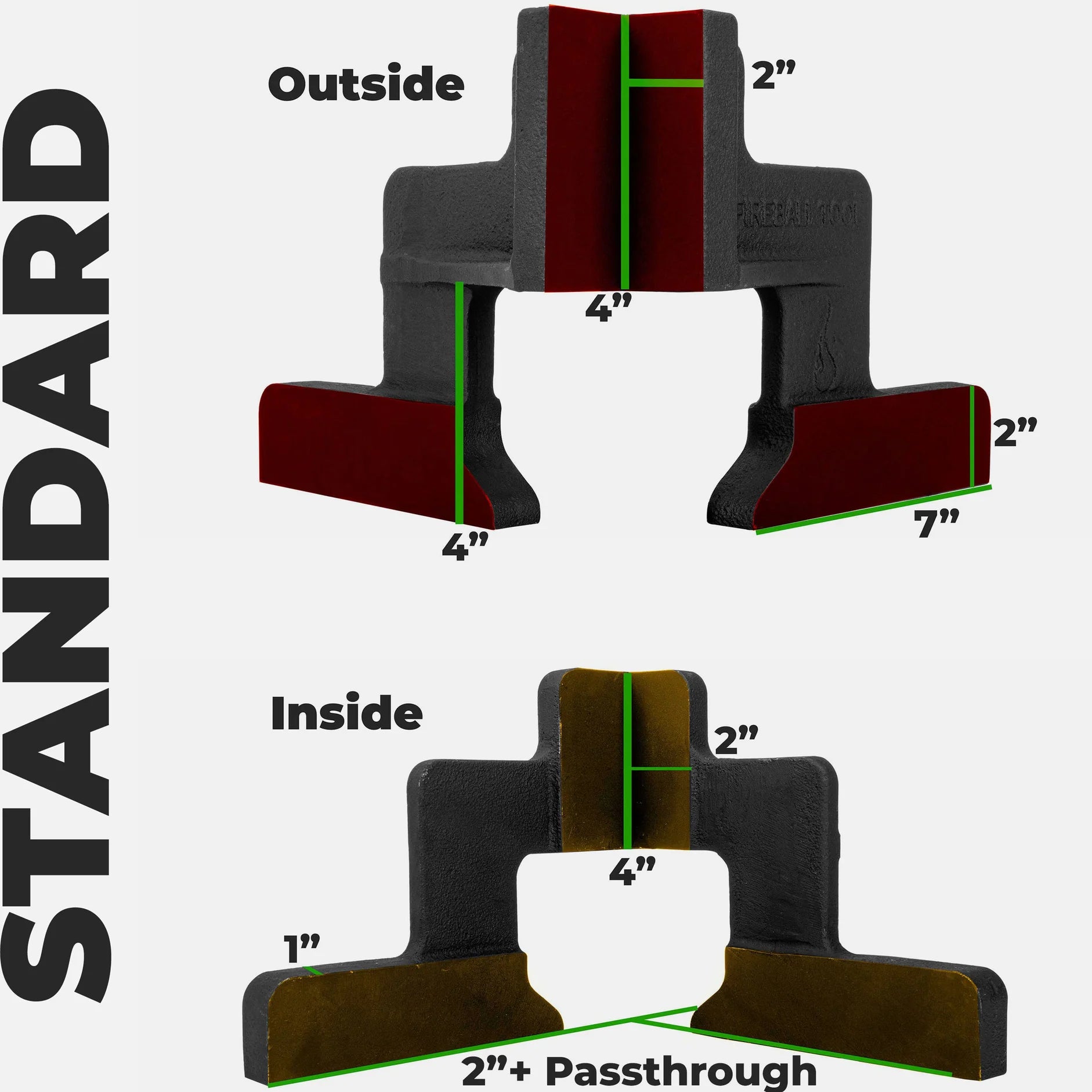

• Use the inside or outside faces. 4 machined faces on both the inside and outside of the square.
• No limit on inside face, large 4” height limit on outside face,
• Ductile cast iron for tensile strength
• Balanced to sit on its front feet, with additional small magnets on the front feet to resist tipping.
• Feet of the square are 1” wide to match our Fireball Fence Block fixture system
• Tapped holes in both feet for installing pins that quickly align the feet with the 2” grid pattern of common welding tables

• Part Number: F5-TAS100-FE
