ESAB Atom Arc 8018 (E8018-C3 H4R)



Atom Arc 8018 electrodes deposit 1% Ni weld metal. They are used primarily to weld high-tensile steels in the 70-80 ksi (483-552 MPa) tensile strength range, especially
where notch toughness at temperatures as low as -40°F (-40°C) is required. The 1% nickel addition makes this electrode a great choice for matching base metal properties of weathering or CORTEN steel. (A588)

Industries:

• Bridge Construction
• Industrial and General Fabrication
• Mobile Equipment
• Petrochemical Pipeline
• Power Generation
• Ship Barge Building

• Approvals and Classifications

  • AWS A5.5 : E8018-C3 H4R
  • ABS 3Y AWS A5.5: E8018-C3
  • QPL-22200 1 MIL-8018-C3 LR 4Y40M(H10)
  • CWB CSA W48 E5518-C3

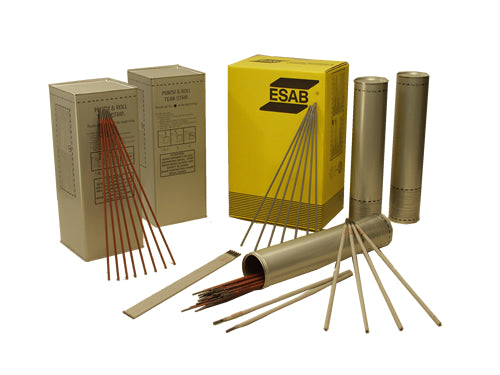

  • Packaged in hermetically sealed cans
  • Available in 10 lb (4.54 kg) or 50 lb (22.7 kg) quantities
  • Rod Length – 14

  • Diameters and Package Sizing

    • 3 32 (2.4) x 14 – 255047359 – 10 lb (4.54 kg)
    • 1 8  (3.2) x 14 – 255061806 – 10 lb (4.54 kg)
