ERAZ92A Magnesium TIG Rod Online

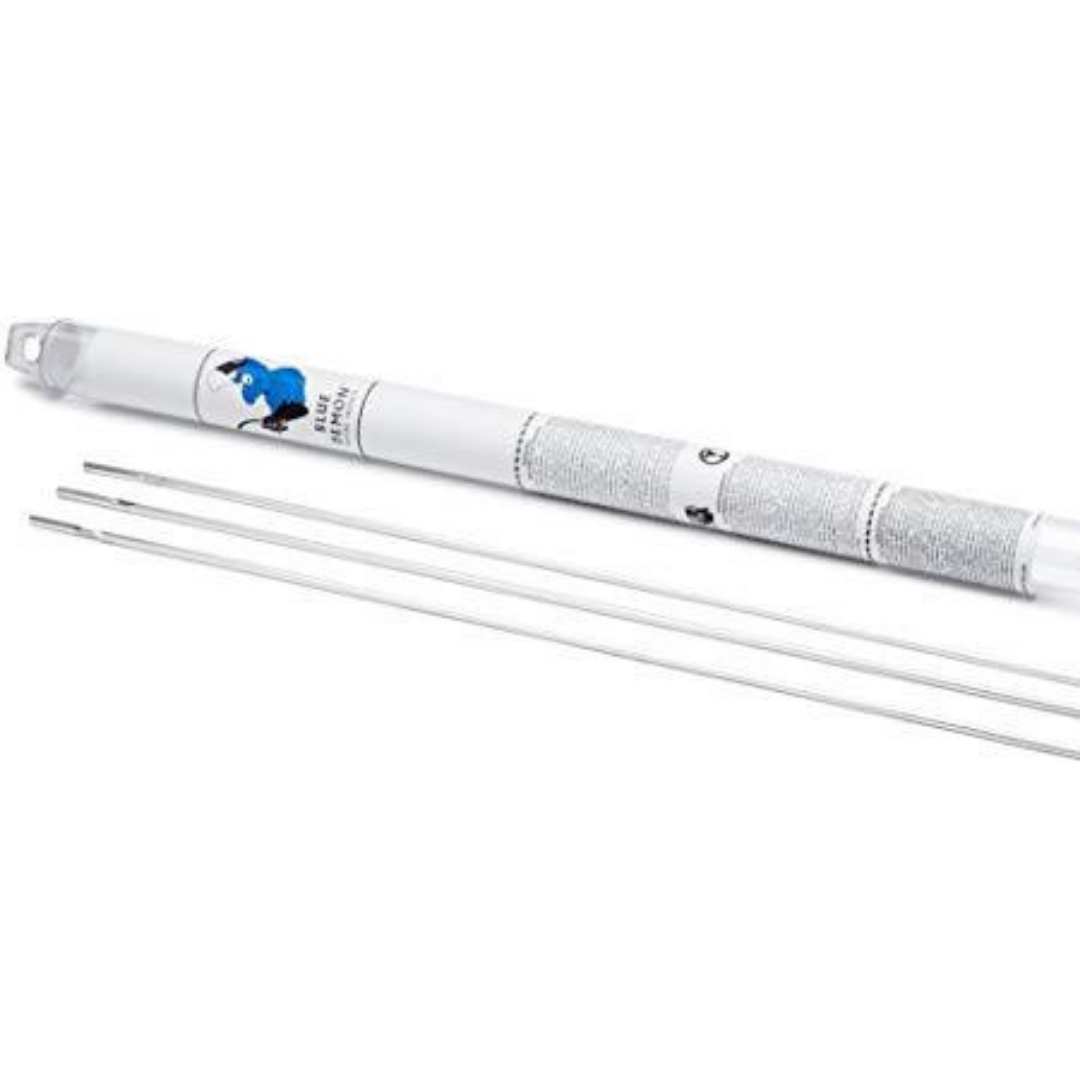

Blue Demon ERAZ92A Magnesium TIG Rod

ERAZ92A magnesium welding alloy is a good choice when welding magnesium base metals of cast Mg-Al-Zn and AM100A. It produces strong joints with less crack sensitivity.  Cleanliness of both the filler metal and base metal is extremely important when welding with magnesium.  Flux is NOT required for TIG or MIG welding processes of ERAZ92A magnesium alloy. Although Oxy-acetylene welding of this alloy is uncommon it can be done and should be limited to single-pass welding on thin gauge magnesium materials.

AWS Specification
ANSi AWS A5.19-92 (R2006)
AWS Classification ERAZ92A

Options:

• 1 16, 3 32, 1 8, – 1 lb per package
• Rod length is 36

• Approximate number of rods per 1 lb. pack for each diameter:

  • 1 16 (1.6mm): 26 – 30
  • 3 32 (2.4mm): 12 – 16
  • 1 8 (3.2mm): 8 – 10
  • Suggested Operating Range in Amps
    • 3 32″ 35 – 125
    • 1 8″ 160
    • 5 32″ 175

    • Typical Wire Chemistry
      Al 8.3 – 9.7
      Be 0.0002 – 0.0008
      Mn 0.15 – 0.5
      Zn 1.7 – 2.3
      Cu 0.05
      Fe 0.005
      Ni 0.005
      Si 0.05
      Mg REM
      OTHER 0.30


      Typical Mechanical Properties
      (As Welded)
      Yield Strength, ksi 14
      Tensile Strength, ksi 25
      Elongation%, min 2
      Brinell Hardness 65
      Melting Point °F 1110
