ERAZ61A Magnesium TIG Rod Online

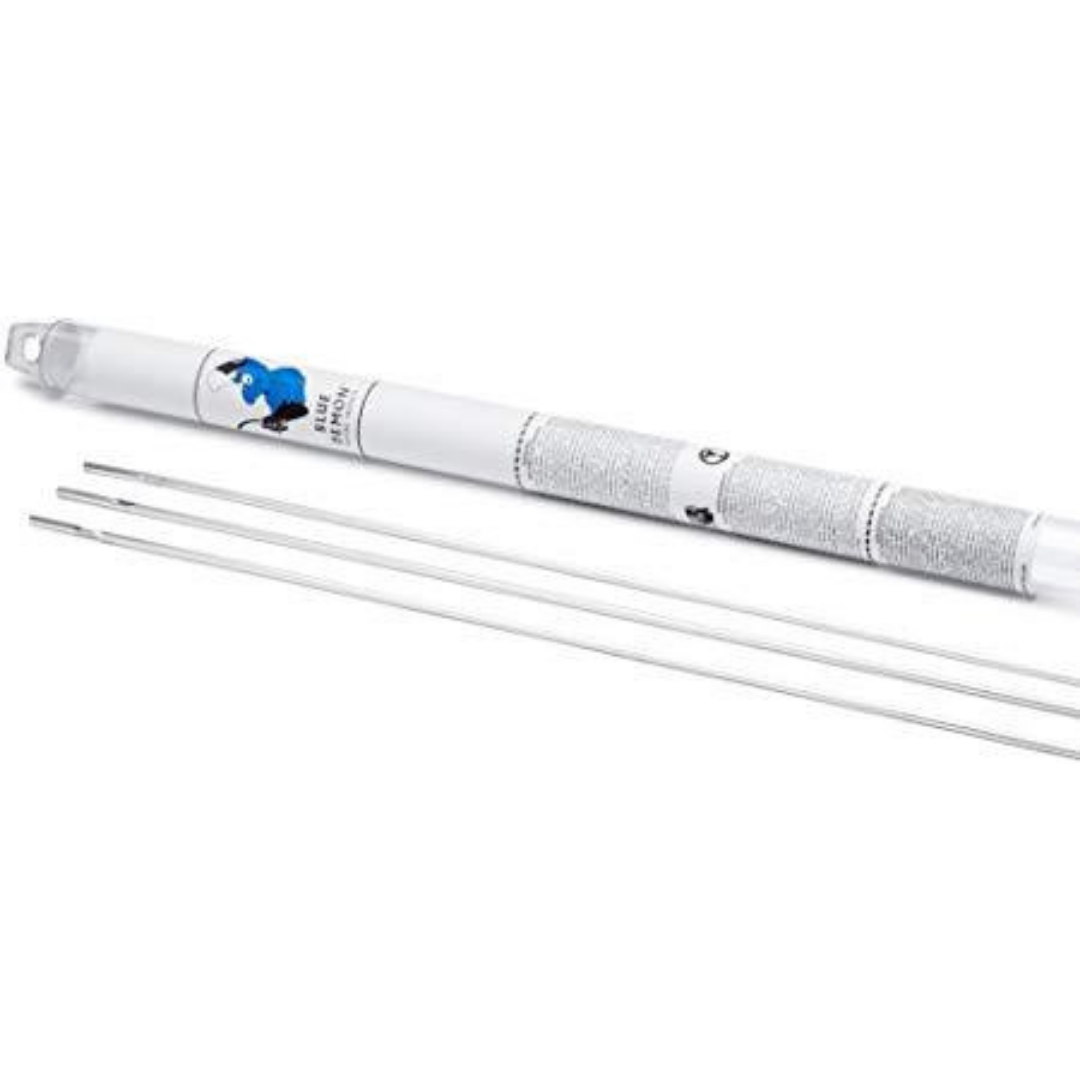

Blue Demon ERAZ61A Magnesium TIG Rod

ERAZ61A magnesium welding alloy is generally the preferred filler metal when welding magnesium base metals of similar chemical composition as well as ZK21A.  It produces strong joints with high tensile strength.  Cleanliness of both the filler metal and base metal is extremely important when welding with magnesium.  Flux is NOT required for TIG or MIG welding processes of ERAZ61A magnesium alloy. Although Oxy-acetylene welding of this alloy is uncommon it can be done and should be limited to single-pass welding on thin gauge magnesium materials.

AWS Specification:

• ANSi AWS A5.19-92 (R2006)
• AWS Classification ERAZ92A

• Options:

  • 1 16, 3 32, 1 8, – 1 lb per package
  • Rod length is 36

  • Approximate number of rods per 1 lb. pack for each diameter:

    • 1 16 (1.6mm): 26 – 30
    • 3 32 (2.4mm): 12 – 16
    • 1 8 (3.2mm): 8 – 10

    • Suggested Operating Range in Amps:

      • 3 32″ 35 – 125
      • 1 8″ 160
      • 5 32″ 175

      • Welding Current: GTAW – AC DCEP



        Typical Wire Chemistry
        Al 5.8 – 7.2
        Be 0.0002 – 0.0008
        Mn 0.15 – 0.5
        Zn 0.4 – 1.5
        Cu 0.05
        Fe 0.005
        Ni 0.005
        Si 0.05
        Mg REM
        OTHER 0.30


        Typical Mechanical Properties
        (As Welded)
        Yield Strength, ksi 30
        Tensile Strength, ksi 44
        Elongation%, min 16
        Brinell Hardness 60
        Melting Point °F 1140
