DGP Piranha III Tungsten Electrode Grinder

With Vacuum System – Sliding dust shield for 100% dust containment

Model: DGP-PG3-A-V2

The Piranha III Tungsten Grinder was designed for maximum commercial use and includes a universal collet which will grind from .040.-3 16. The construction of the New Piranha III unit is aluminum and very user-friendly.

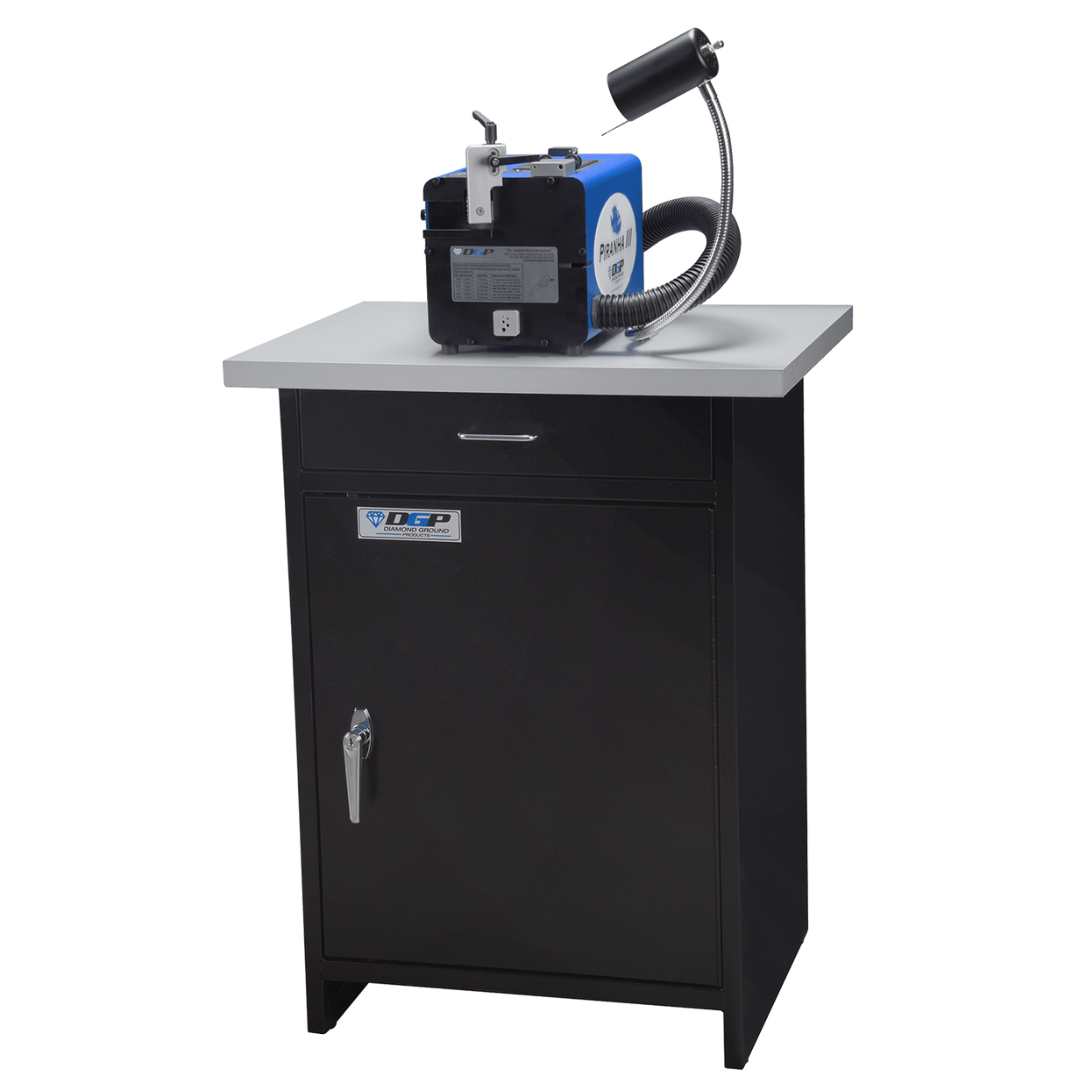

The New Piranha III unit is also fully enclosed with a 100% containment of excess tungsten electrode dust.  Includes vacuum system, as well as, foam insulated cabinet and flexible spotlight.

• Range of Included Angle: 10° – 60°

• Electrode Diameters: .040″ (1.0 mm), 1 16″ (1.6 mm), 3 32″ (2.4 mm), 1 8” (3.2mm), 5 32” (4.0mm) & 3 16” (4.8mm)

• Minimum Electrode Length: 1.75″ (44.5 mm)

• Voltage: 110 VAC, 60Hz

• Power Consumption: 500 Watts

• Motor: 1 3 hp, 1,700 rpm, 6.0 amps

• Length: 12” (304.8mm)

• Width: 7.5” (190.5mm)

• Height: 7.5” (190.5mm)

• Weight: 32 lbs (14.5 kg) – Package weight: 38 lbs (17.2 kg)

• • SAFETY
    Enclosed grinding area captures Tungsten dust for easy disposal.

  • WELD QUALITY
    20 Ra surface finish improves Tungsten life, arc starting, arc stability & produces consistent weld penetration.

  • PRODUCTIVITY
    Correctly & consistently diamond grind your Tungsten Electrode (up to 3 16″) longitudinally in less than 30 seconds.

  • VALUE
    Diamond grinds, flats & notches your Tungsten economically.

  • • Easy set-up, optimal consistency and near-perfect repeatability.
    • Compact, durable and solid design with no vibration.
    • Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life and weld penetration.
    • Universal collet arm for 6 electrode sizes – 040” (1.0mm), 1 16” (1.6mm), 3 32” (2.4mm), 1 8” (3.2mm), 5 32” (4.0mm) & 3 16” (4.8mm) – with no equipment changes
    • Included angle scale for angles from 10° – 60° Precision tip flat gauge & depth adjustment stop ensures exact tungsten points every time – enabling consistent, repeatable arc performance and welding output.
    • Containment baffle to keep dust inside the grinder housing, for safety and easy disposal.
    • Electrode notching station for simple cut-off.
    • Double-sided grinding wheel for maximum wheel life and value.
    • Detailed manual for valuable engineering data and welding recommendations.
    • Integrated receptacle for electrode storage access.
    • Recessed carry handle for better form & function.
