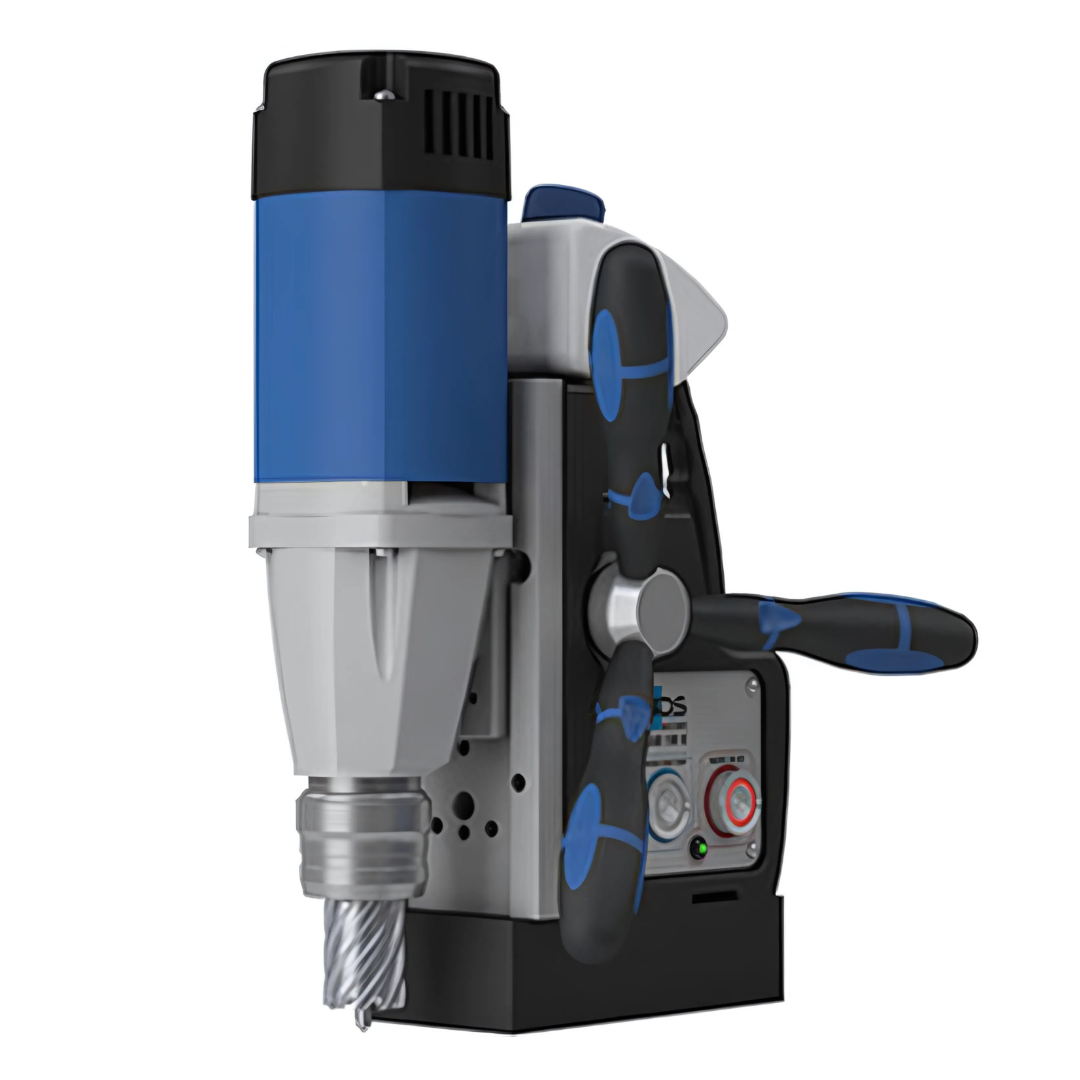

CS Unitec MAB 100 K MAG Drill



The NEW CS Unitec MAB 100 K magnetic drill is a streamlined, light-weight magnetic drill that punches above its weight. This model was designed for easy, fast drilling with reduced fatigue. At 21.8lbs this drill is the lightest MAB series magnetic drill available and one of the lightest magnetic drills on the market. This lightweight construction dramatically reduces user fatigue and allows for faster, easier hole alignment. Making the tiring task of drilling on verticals and overhead a breeze. The MAB 100 K also comes standard with a quick-change keyless chuck for fast changeover between annular cutters and other cutting tools, drilling up to 1-3 8” diameter.

Features:

• Red Dot 2021 Product Design Award Winner
• Ideal for drilling & milling
• Drill up to 3-1 8” dia. holes
• Portable x,y cross table base for dynamic hole drilling and milling
• 4-3 8” (110mm) in x-axis, 4-3 4” (120mm) in y-axis
• Reversible motor – tap up to 1-3 16” dia.
• Internal Lubrication for increased cutting tool life
• Variable speed and torque allow for increased cutting tool life and reduced operating cost
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
• Included carrying case with transport wheels allows for easy portability
• Morse Taper 3 spindle for easy changeout to a wide range of tool holders with included chuck collet tool holder set (ZSF 316)
• Large capacity (3-1 8” dia.) and Large stroke (10”) to fit a wide range of milling and drilling applications
• CoolMag™: Magnet overheating protection for reduced tool wear
• Streamlined, ergonomic arrangement of controls for easy operation
• Servo assisted drilling for reduced fatigue and consistent feed pressure
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
• SafeMag™: Green Red LED magnetic force indicator for safe operation
• Up to 6,600 lbs of magnetic holding force

• Items Included:

  • 1 Magnetic drilling machine
  • 3 4 Weldon Quick Change chuck (affixed)
  • 1 Carrying case
  • 1 1 Pilot Pin
  • 1 2 Pilot Pin
  • 1 Safety Strap
  • 1 Operating manual
  • 1 Warranty certificate

  • Specifications:

    Motor Power		9 Amp 110 Volt
    Weight		21.8 lbs.
    Stroke		2-3 4
    Hole Capacity		1-3 8 dia.
    Twist Drill Capacity		1 2 dia.
    Speeds		460 RPM
    Magnet Base Size		6-5 8 L x 3-1 3 W
    Dimensions		12-1 2 H x 7-2 5 L x 6-1 5 W
    Magnetic Force (1 Plate)		3080 lbs.
    Arbor Bore		3 4 Quick-Change Keyless Chuck
    Automatic Lubrication		Oil bottle included
