Comparc S604 Wire Feeders – Miller Compatible



14-Pin Wire Feeders for use with Comparc and select Miller power supplies

Features:

• 2T 4T trigger lock
• Wire jog
• Gas purge
• Accepts Miller style MIG torches
• Fits Miller CV power sources with 24V power and 14-Pin control cables

• Specifications:

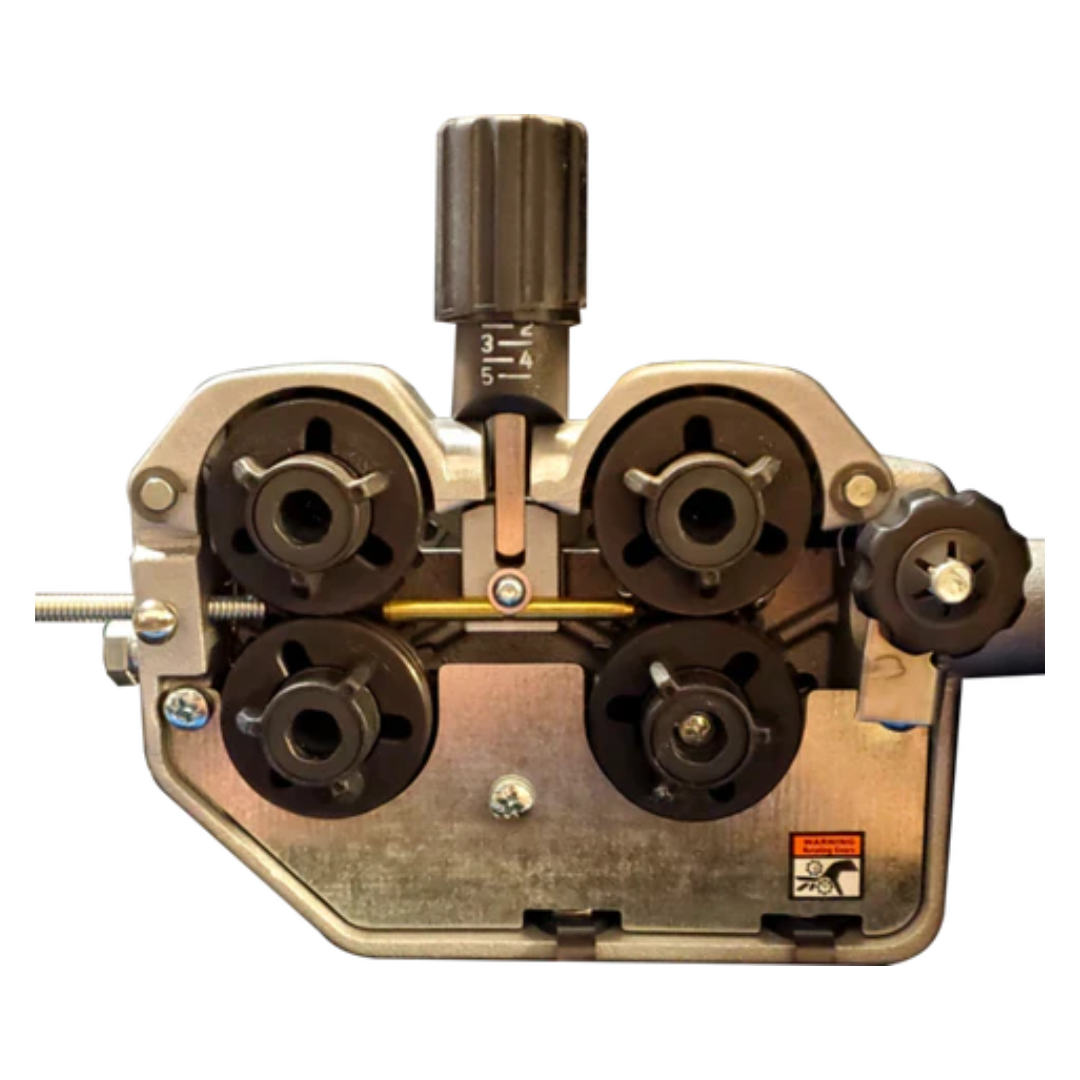

  • 4 rollers
  • Wire Feed Speed: 75 IPM. – 900 IPM.
  • Wire Diameters: .023 – 1 8 (0.6mm – 0.125 )

  • Options and Part Numbers:

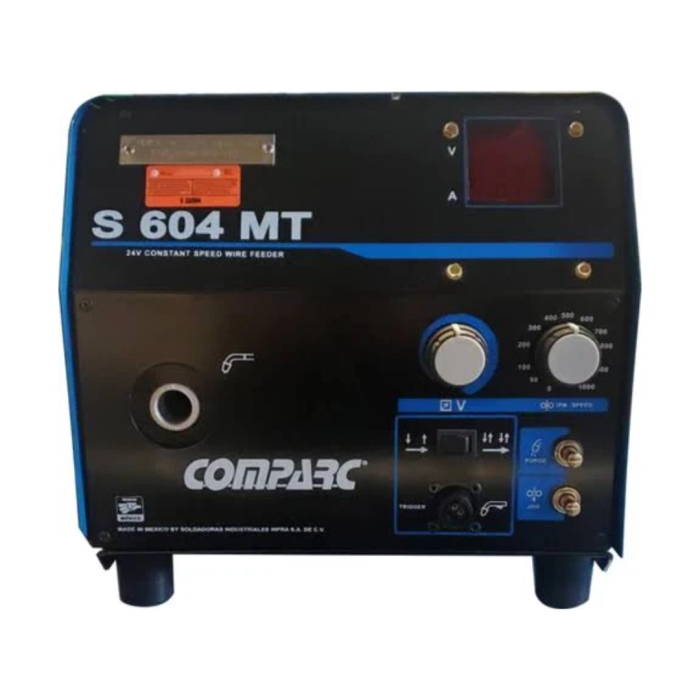

    • S604 MT – Feeder with Digital Meters and Voltage Control – Part Number: 309-153

    • Comparc 604 Feeders are Compatible with the Following Miller Power Sources

      • Deltaweld 302, 452, 652, 350 & 500 with 14 pin only

      • Dimension 302, 452, 652, 650, NT450, NT500
      • Invision 352MPa, 354MP, 304P, 450MPa, 456P, 456MP

      • XMT-350CC CV, 350MPa, 450CC CV, 450MPa, 304CC CV, 425CC CV, 456CC CV

      • Deltafab

      • Phoenix 456

      •
