CK Worldwide 8 Series Short (Low Profile) Cups



CK Worldwide short (low profile) TIG torch cups.  Options below for available sizes with interchangeable Weldcraft part numbers. Alumina oxide and ceramic cups available.

5% Discount added at checkout for orders of 10+ Cups

• Sold in quantity of 1 cup per order

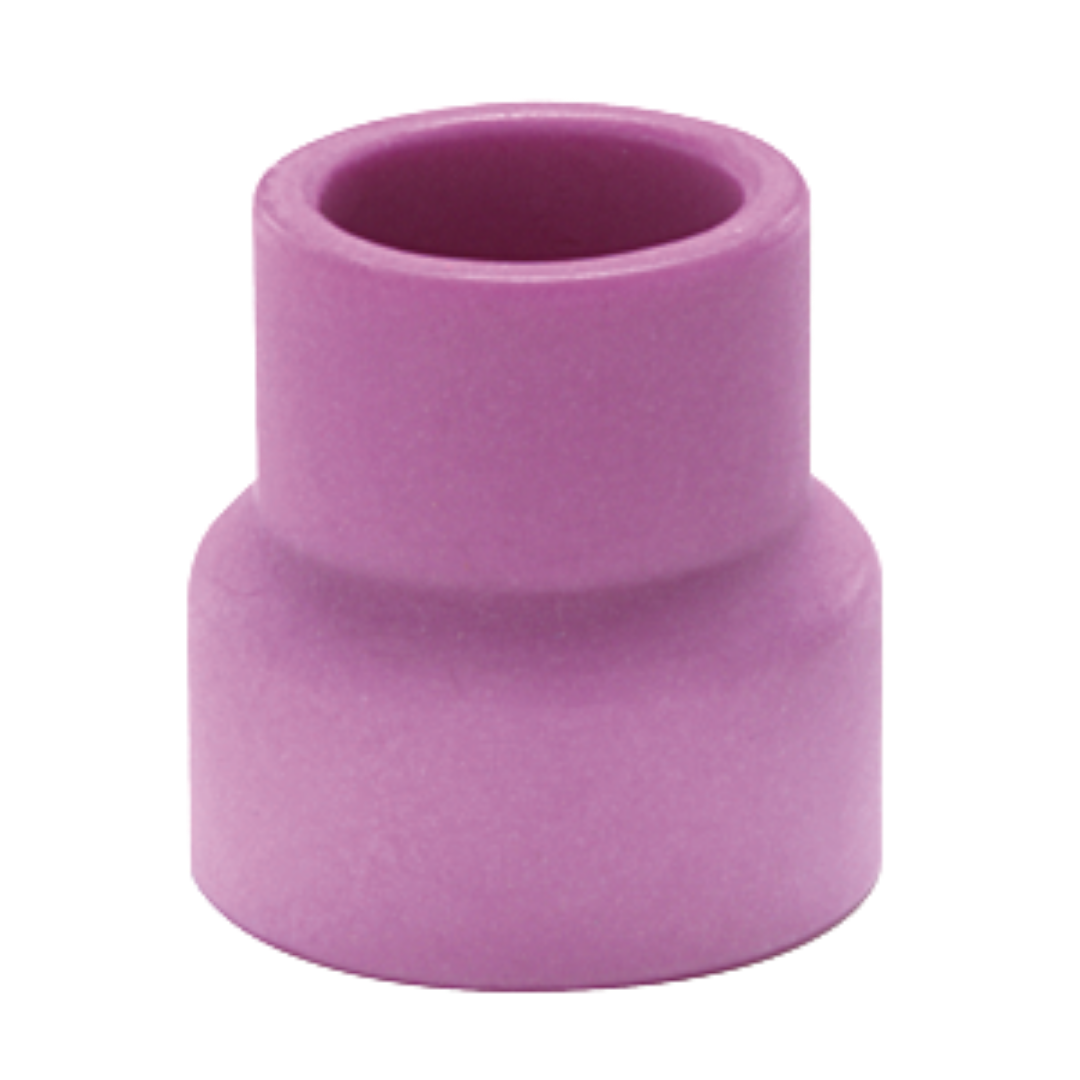

• Options (Alumina Cups):

  Cup Size		Orifice Diameter		CK Part#		Weldcraft part#
  #1		1 8 (3.1mm)		8A1		A53N23
  #4		1 4 (6.3mm)		8A4		A53N24
  #5		5 16 (7.9mm)		8A5		A53N25
  #6		3 8 (9.5mm)		8A6		A53N27

  • Alumina cups measure 5 8 (15.9mm) in length

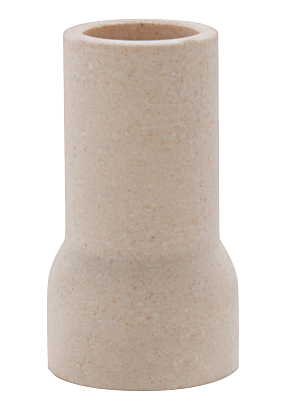

  • Options (Ceramic Cups):

  Cup Size		Orifice Diameter		CK Part #		Weldcraft part#
  #4		1 4 (6.3mm)		8C4		53N24
  #4 Long		1 4 (6.3mm)		8C4L		53N28
  #5		5 16 (7.9mm)		8C5		53N25
  #6		3 8 (9.5mm)		8C6		53N27
  #6 Long		3 8 (9.5mm)		8C6L		53N26

  • Ceramic cups measure 5 8 (15.9mm) in length
  • Long ceramic cups measure 1-5 8 (41.2mm) in length

  • Fits the following torches:

    • CK9
    • CK20
    • CK25
    • CK100
    • CK110
    • CK130
    • CK200
    • CK230
    • FL2L
    • CKM230
    • CWH230
    • CWM230

  Cup Size	#1 Alumina Cup – 8A1, #4 Alumina Cup – 8A4, #5 Alumina Cup – 8A5, #6 Alumina Cup – 8A6, #4 Ceramic Cup – 8C4, #4 Long Ceramic Cup – 8C4L, #5 Ceramic Cup – 8C5, #6 Ceramic Cup – 8C6, #6 Long Ceramic Cup – 8C6L
