BuildPro Inserta Clamps For 5 8 Diameter Tables



For BuildPro and other Ø5 8″ fabrication tables, provides fast hold-down clamping

Place the Inserta Clamps into the 5 8″ holes on the BuildPro tabletop and squares for fast, easy clamping. Clamp in the vertical or horizontal position at any height.

The Ratchet Handle Model is ideal for tight space clamping, and the ratchet mechanism ensures rapid, vibration and torsion-resistant clamping.

Clip the optional Top V-Pads onto the top spindle to clamp round or angled stock. Remove the clamp arm by depressing the spring stop, and slide the Sidekick attachment onto the clamp bar, followed by the clamp arm, for two-point horizontal and vertical clamping force.



Part No.		Handle		Clamping Capacity (in)		Throat Depth (in)		Clamping Pressure (lb)		Rail Size (in)		Weight (lb)

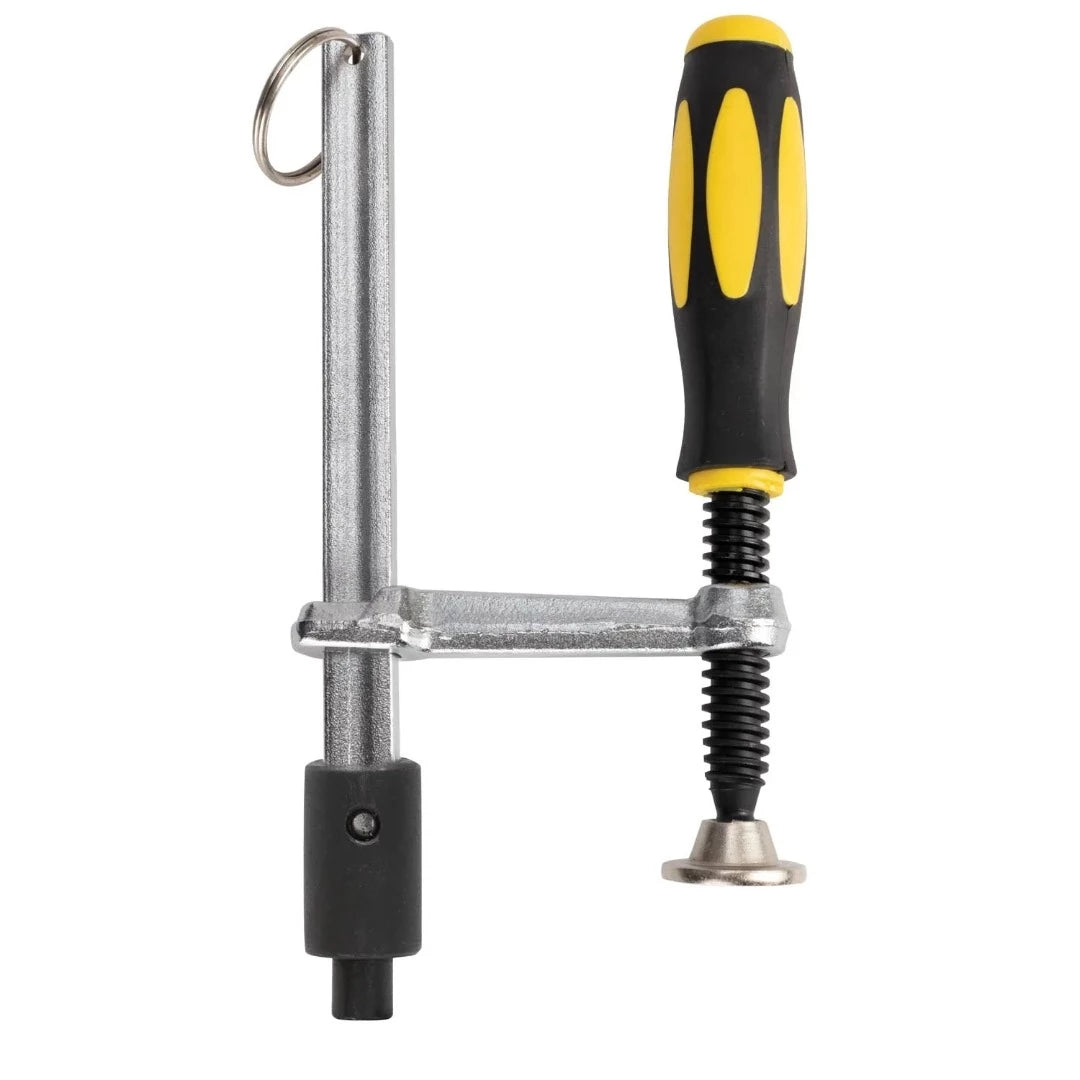

UDWN5150		Straight Handle		6-1 2		3-1 4		300		5 8 x 5 16		1.4

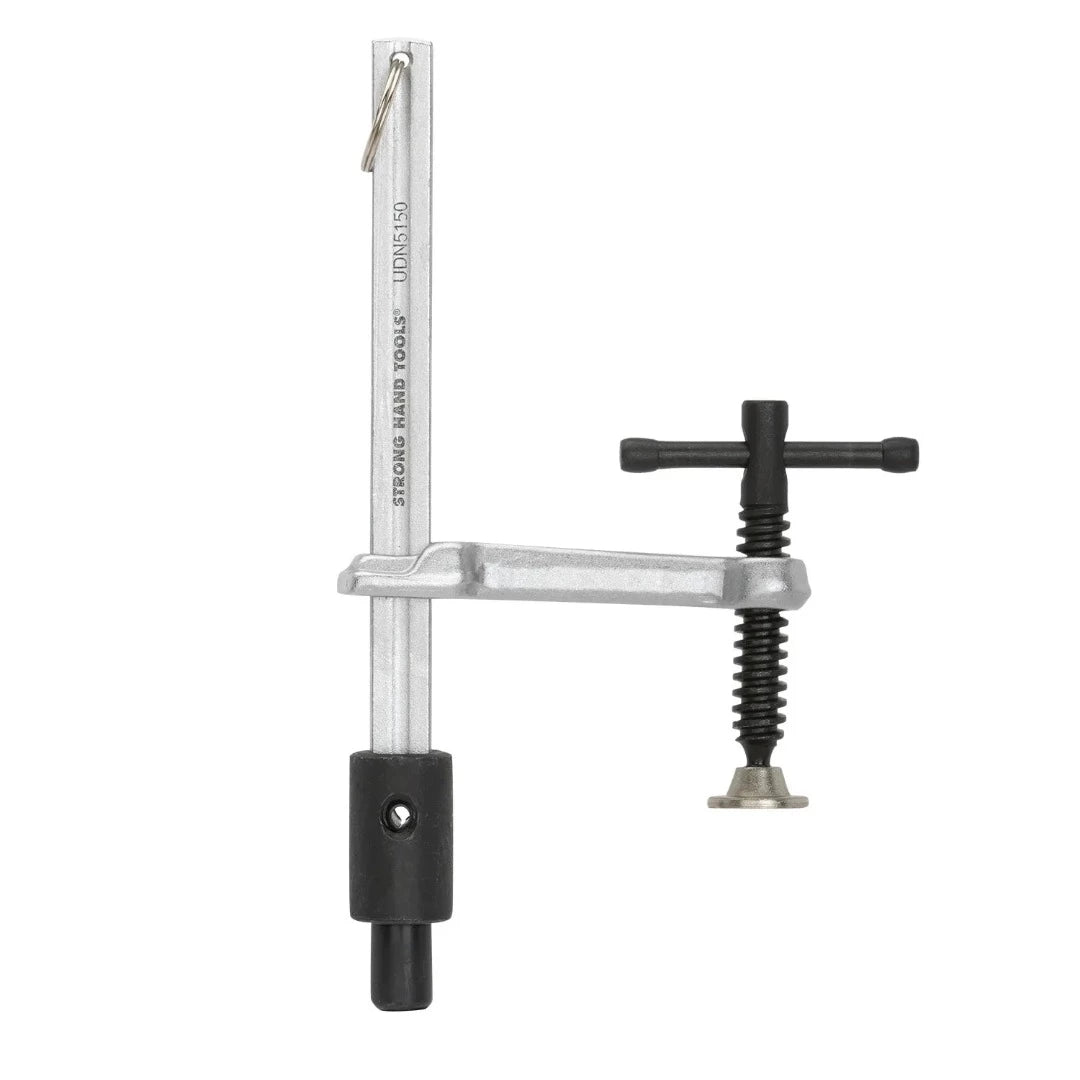

UDN5150		T-Handle		6-1 2		3-1 4		300		5 8 x 5 16		1.2

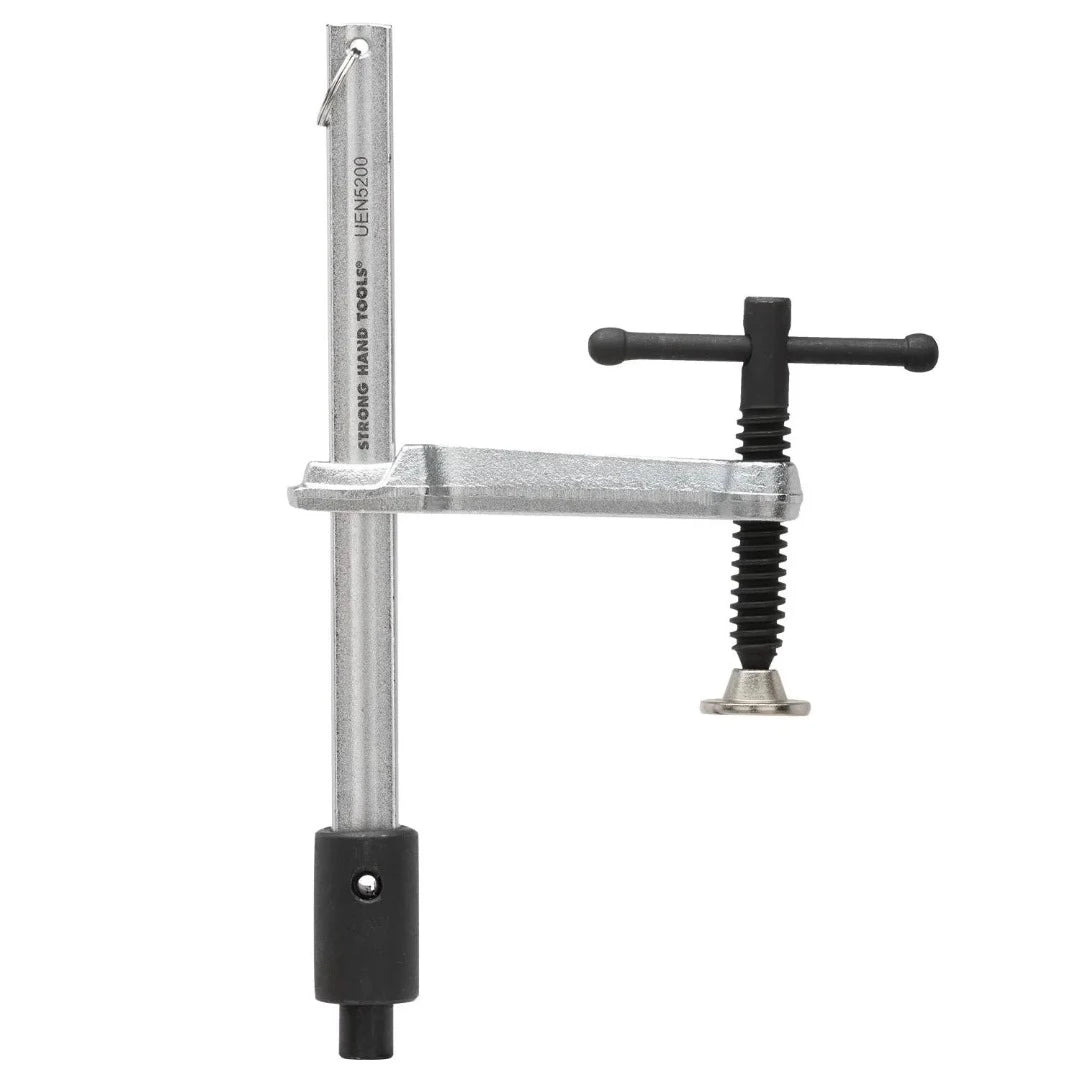

UEN5200		T-Handle		8-1 2		4		400		25 32 x 3 8		2.2

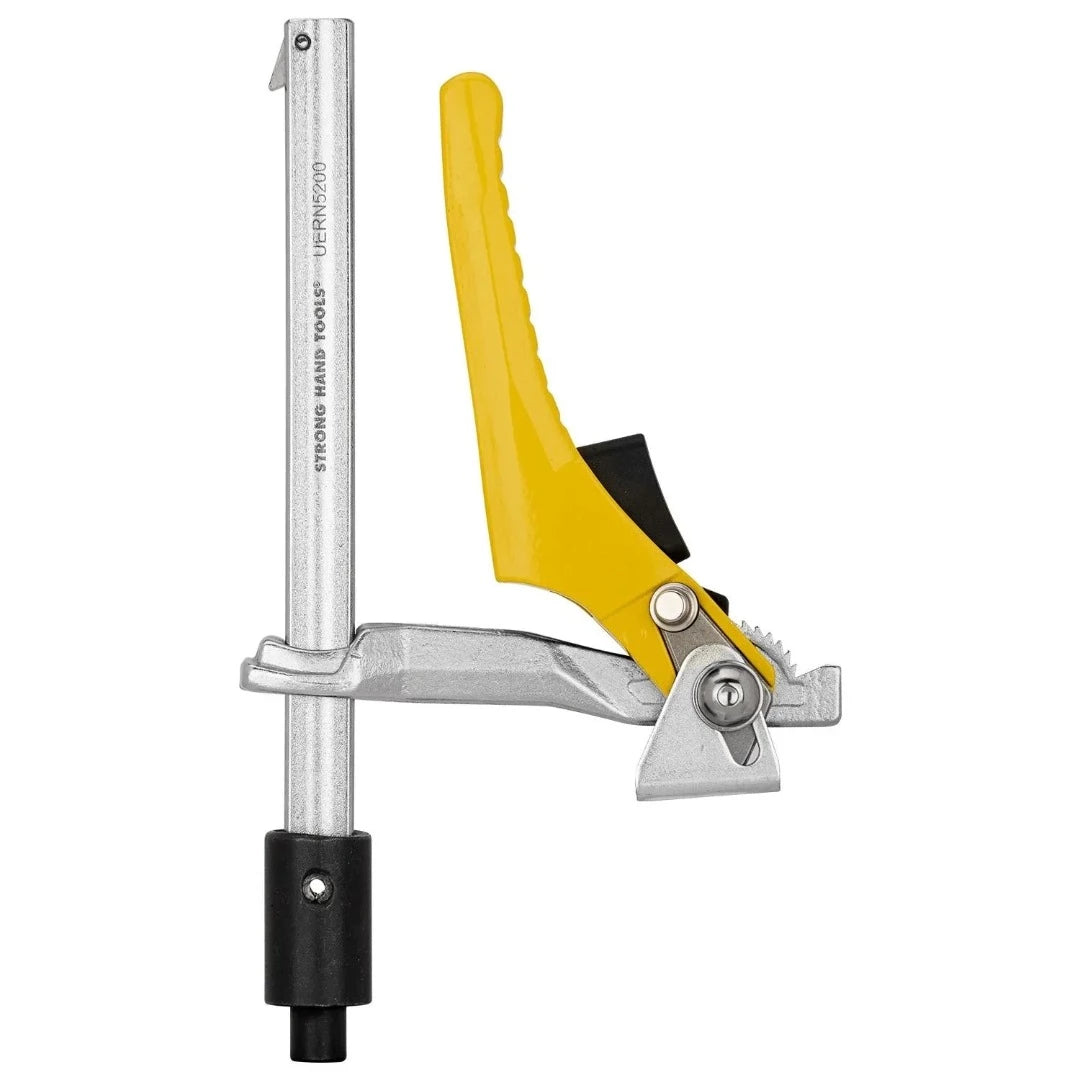

UERN5200		Ratchet Handle		8-1 2		4		400		25 32 x 3 8		2.2

Handle	T-Handle, Straight Handle, Ratchet Handle
Clamping Capacity	6.5", 8.5"
