Blue Demon E6013 Mild Steel Covered Electrodes



E6013 is a mild-steel, all position, general purpose cellulose-base rod.  It operates on AC or DC welding current and works well on low voltage AC machines.  E6013 is an excellent choice where there is poor fit-up in the joint.  It deposits easily and smoothly producing medium to shallow penetration.  Small sizes are well adapted to low heat and thin metals.  Medium to heavy slag is easily removed and provides for excellent weld cleaning action during the welding process.

Typical Applications:  general purpose fabrication, metal buildings and structures, machine parts, shaft buildup

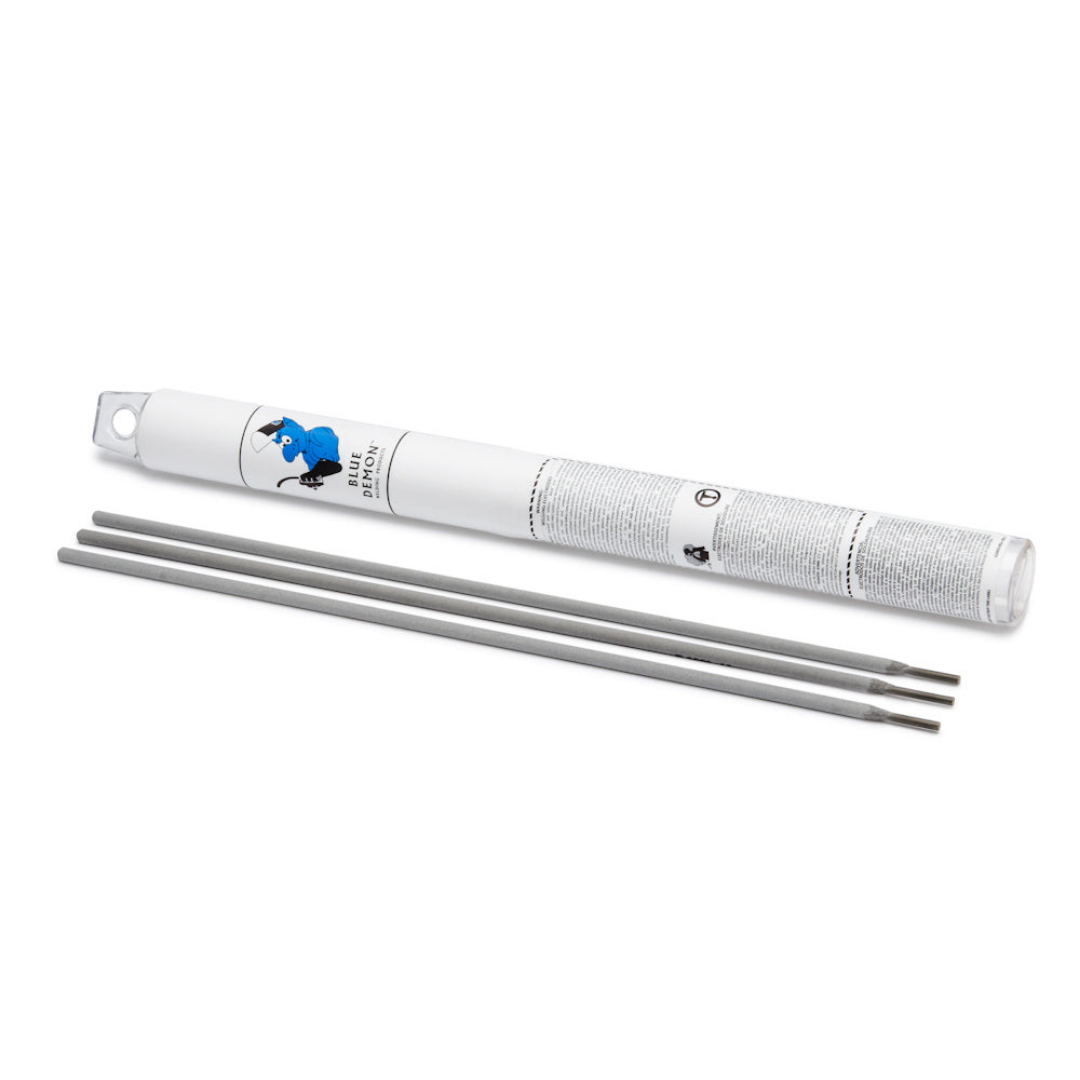

• Sold in 1 lb plastic tube, electrode length is 14

• Available Sizes:

  • 1 16 – E6013-116-01
  • 3 32 – E6013-332-01
  • 1 8 – E6013-125-01
  • 5 32 – E6013-532-01

  • Approximate number of rods per 1 lb. pack for each diameter:

    • 1 16 (1.6 mm) 50 – 56
    • 3 32 (2.4mm): 28 – 34
    • 1 8 (3.2mm): 16 – 18
    • 5 32 (4.0mm): 10 – 12

    •

      AWS Class: E6013		Certification:  AWS A5.1 A5.1M:2004
      Alloy:  E6013		ASME SFA A5.1

      Welding Position:  F, V, OH, H		Current: DC, AC, DCEP, DCEN

      Tensile Strength, kpsi:		60 min
      Yield Strength, kpsi:		48 min
      Elongation in 2” (%):		17 min



      Typical Welding Parameters
      Diameter			Process		Volt		Amps (V OH)
      in		(mm)
      3 32		(2.4)		SMAW		19-24		40-80
      1 8		(3.2)		SMAW		18-23		70-120
      5 32		(4.0)		SMAW		20-24		130-160
      3 16		(4.8)		SMAW		20-23		140-220

      Diameter	1/16", 3/32", 1/8", 5/32"
      Quantity	1 lb.
