Western Enterprises – AW-15 – B Size Adapter Fitting CGA-033 LH Female Water to 1 4 Male NPT. CGA 033 (Water B size Female – Left Hand Thread 5 8-18) 1 4 NPT – Male Pipe Thread Material – Brass Inert arc hose adapter Max pressure rating 200 psi

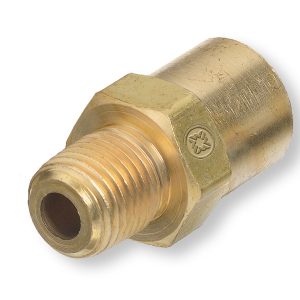

Western Enterprises – AW-152 – B Size Adapter Fitting CGA-032 RH Female to 1 8 Male NPT. CGA 033 (Inert gas B size Female – Left Hand Thread 5 8-18) 1 8 NPT – Male Pipe Thread Material – Brass Inert arc hose adapter Max pressure rating 200 psi Western Part Number: AW-152 Superior Part Number: A-403
Western Enterprises – CGA-033 to 1 4 NPT Coupling Inert arc adapter, CGA 033 to 1 4 NPT Male CGA 033 (B Size, 5 18-18 Left Hand) Nut and Nipple Male 1 4 NPT Right Hand Thread Material – Brass Western Part No. AW-428 Superior Part No. A-415

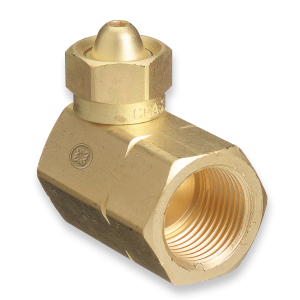

Western Enterprises – 321 Adapter Adapter fitting to use a CGA 510 (POL acetylene regulator) on a MC acetylene tank (CGA-200) CGA-200 female to CGA-510 female Material – Brass Part No. 321

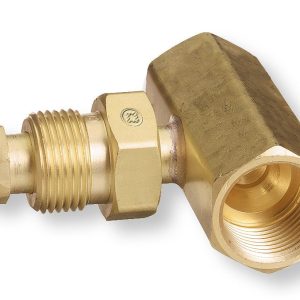

Western Enterprises – CGA-300 to CGA-510 Cylinder Adapter Commercial acetylene bottle to POL acetylene regulator adapter fitting. Converts CGA-300 (0.830 -14 NGO Right Hand threads) to CGA-510 (0.880 -14 NGO Left Hand threads). Part No. 16
Western Enterprises – CGA-320 to 1 2 NPT Coupling Cylinder adapter converts CGA 320 to 1 2 Male NPT Male CGA 320 (.825”-14 NGO) Right Hand Thread Male 1 2 NPT Right Hand Thread Material – Brass Part No. B-22

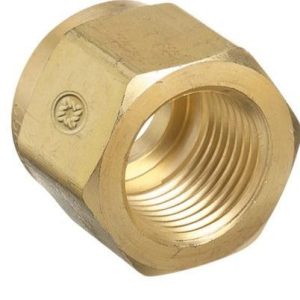

Western Enterprises – CGA-320 Nut Replacement CGA 320 Nut. Commonly found on C02 tanks and regulators CGA 580 – .830 -14 – Right Hand Thread Material – Brass Max pressure rating 3000 psi Part No. CO-2

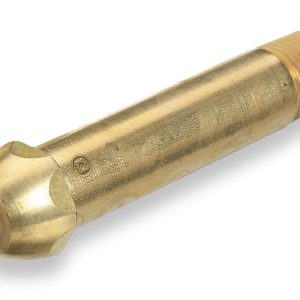

CGA-320 to 1 4 NPT Nipples Replacement CGA-320 to 1 4 thread nipples. Commonly found on C0-2 Regulators. CGA 320 to 1 4 Male NPT RH Thread Material – Brass Max pressure rating 3000 psi Nut is not included, requires .830 -14 NGO, RH Nut Length Options: 2 – Part No. CO-3 2-1 2 – Part No….

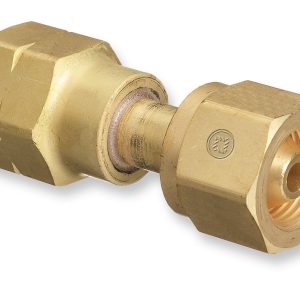

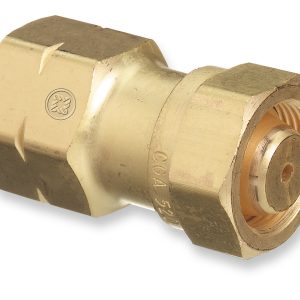

Western Enterprises – 317 Adapter Adapter fitting to use a CGA 510 (POL acetylene regulator) on a B acetylene tank (CGA-520) CGA-520 female to CGA-510 female Material – Brass

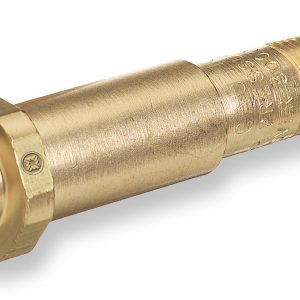

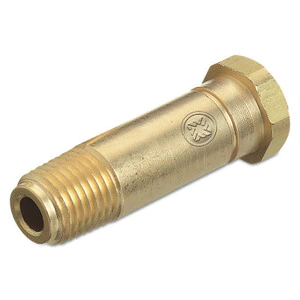

CGA-540 1 4 NPT Nipple Replacement CGA-540 to 1 4 nipple. This nipple is required when using hand tight nuts. CGA 540 to 1 4 Male NPT RH Thread Material – Brass Max pressure rating 3000 psi Nut is not included, requires .908 -14 NGO RH Nut 2-1 16 Long – Part No. 63 (NP-210)…
Western Enterprises – T-92 – CGA-580 T Fitting A great option for purging applications, gives users the option to run two regulators off of one bottle. CGA 580 (0.960 -14 – Right Hand Thread) Material – Brass Male inlet to two female outlet connections Max pressure rating 3000 psi

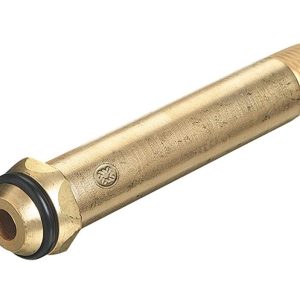

CGA-580 With O-Ring to 1 4 NPT Nipples Replacement CGA-580 to 1 4 nipple. This nipple is required when using hand tight nuts. CGA 580 to 1 4 Male NPT RH Thread Material – Brass Max pressure rating 3000 psi Nut is not included, requires .960 -14 NGO Hand Tight Nut 3-1 2 – Part No….
Western Enterprises – CGA-580 Nut Hand Tight Nut Replacement hand tight CGA 580 Nut. CGA 580 – 0.960 -14 – Right Hand Thread Material – Brass Max pressure rating 3000 psi Part No. 692

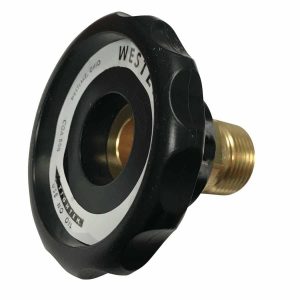

Western Enterprises – CGA-580 Nut Hand Tight Nut Replacement plastic hand tight CGA 580 Nut. CGA 580 – 0.960 -14 – Right Hand Thread Material – Brass Plastic Max pressure rating 3000 psi Part No. 692P
